Prerequisites for cable core compatibility (determining application boundaries)
1.Electrical specifications: 30V low voltage, 80°C, Class 2 low-voltage circuit; suitable for signal and micro-current control lines.
2.Structural advantages: 7-strand 0.10mm tinned copper (TS) conductor; flexible and easy to bend; solderable without oxidation.
3.Thin-wall PVC insulation with a minimal overall outer diameter, suitable for compact, enclosed spaces; compliant with UL VW-1 vertical flame retardancy and RoHS environmental standards.

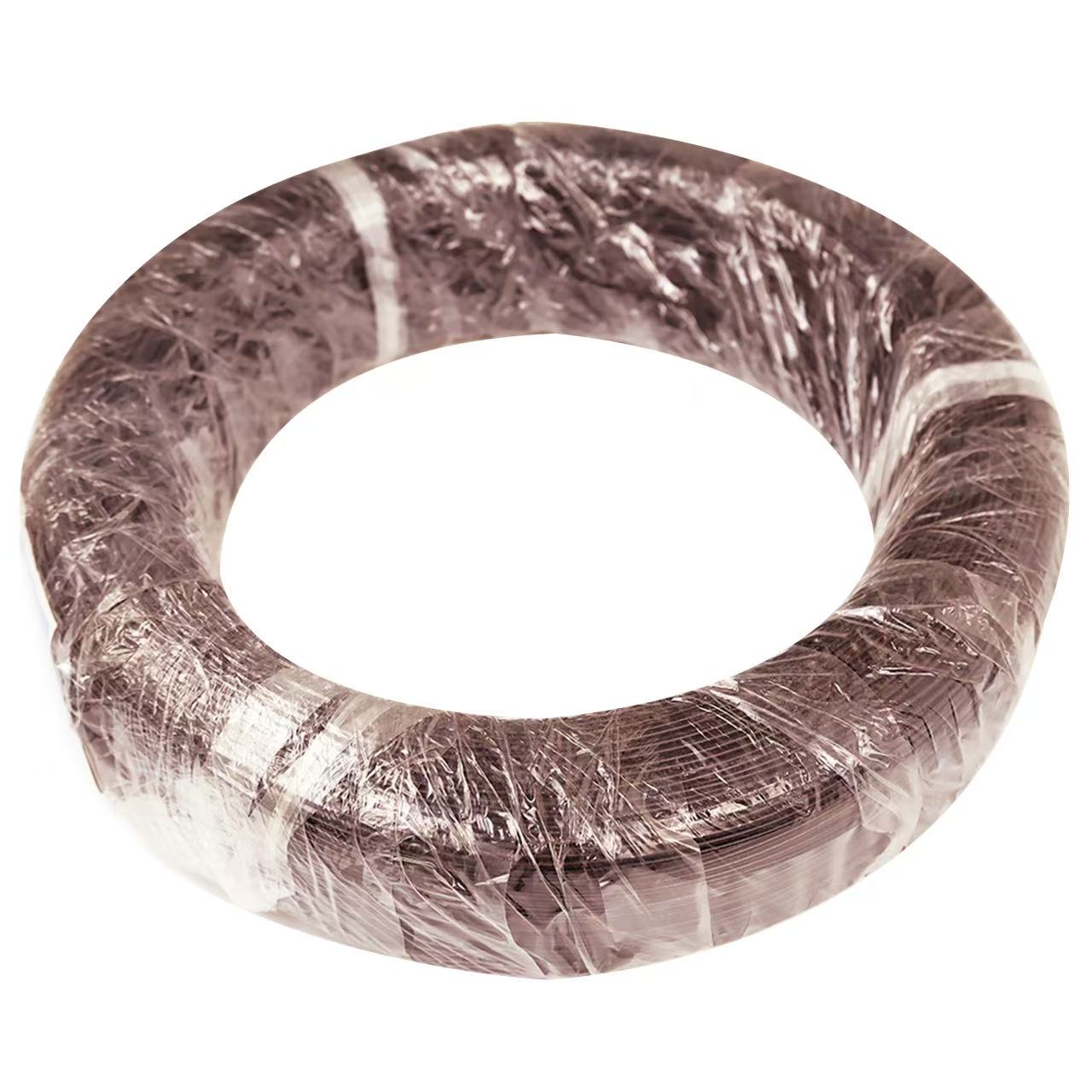

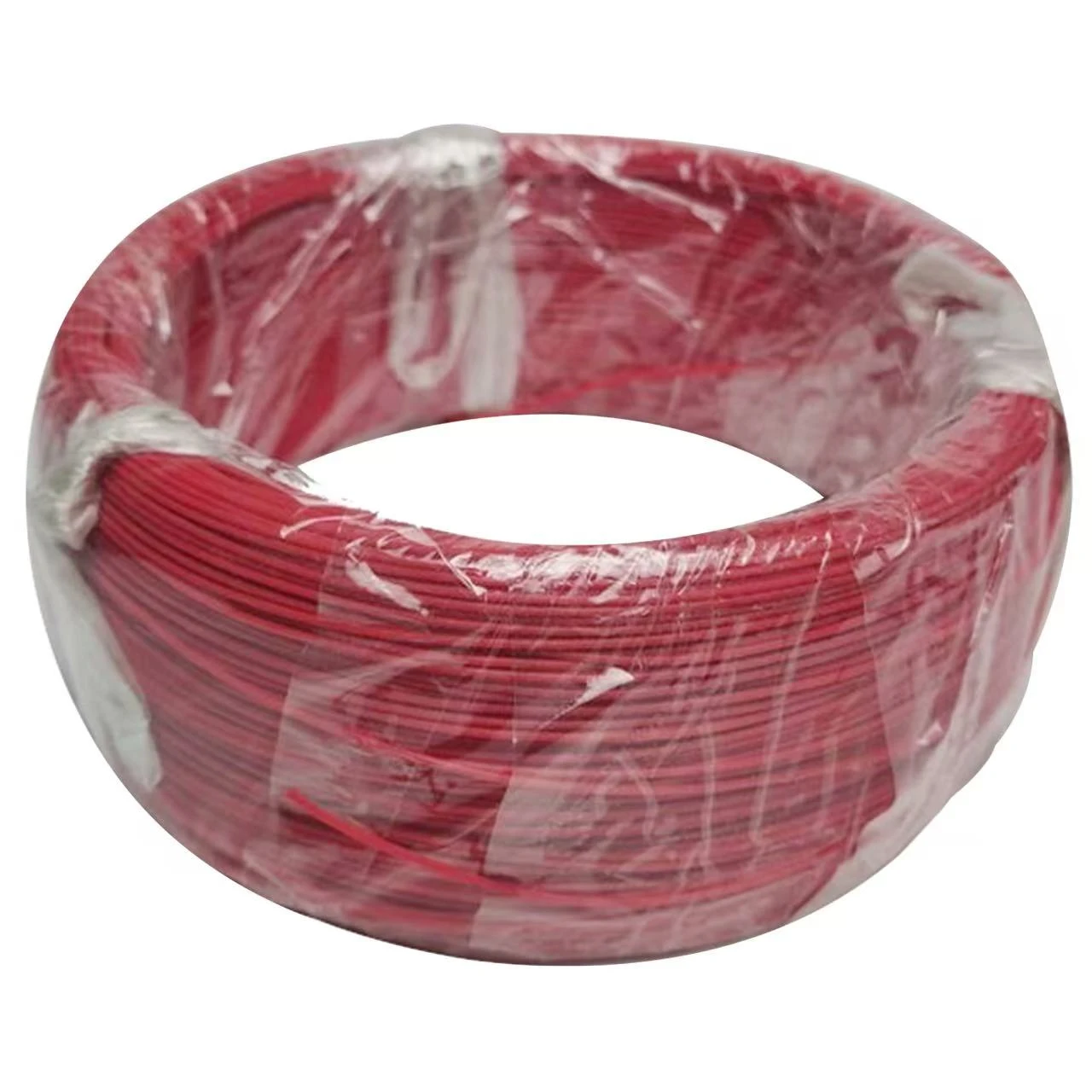

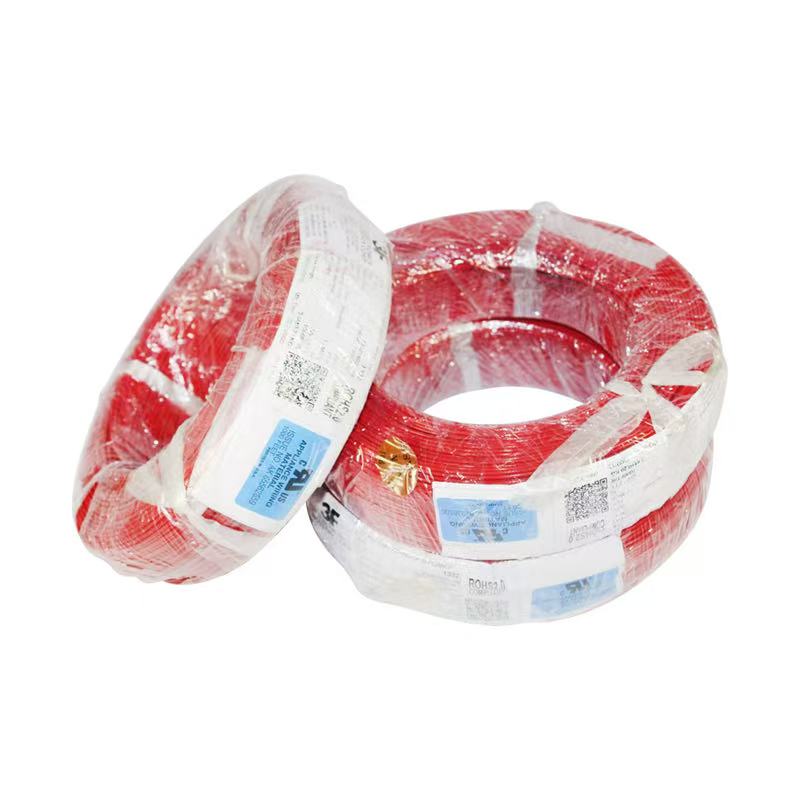

4.Typical applications for 3F UL AWM 1571 PVC 80°C 30V electronic wire:
(1)Consumer Digital & Portable Electronics (Primary Applications)
Laptops, tablets, and all-in-one PCs
Internal jumper wires and FPC adapter cables connecting motherboards to cameras, microphones, button sub-boards, LED backlights, and touch modules; PCB board-to-board flying leads and repair jumper wires.
Peripherals and accessories
Internal wiring for buttons, light sensors, and stepper motor controls in wireless mice, keyboards, portable printers, and scanners; internal signal connections for compact USB hubs.
Wearable smart devices
Fine wires for internal sensors, vibration motors, and charging contacts in smart bands, watches, and Bluetooth headsets; high-density wiring harnesses for compact housings, utilizing small-gauge wire to reduce weight and save space.
Digital accessories
Detection wires for power bank protection boards, signal wires for small LED strips, and connections between Bluetooth speaker buttons and amplifier boards.
(2)Small Home Appliances & Smart Home
Small Home Appliances
Humidifiers, facial cleansing devices, electric toothbrushes, curling irons, high-speed blender control panels, temperature sensors, internal wiring for micro-motors
Smart Home Modules
PIR sensors, magnetic door/window sensors, temperature and humidity probes, wireless switches, internal signal wiring for camera modules; router and optical modem motherboard indicator wiring, RF board jumpers
Lighting Drivers
Internal low-voltage sampling wires for LED driver power supplies, signal control wires for LED strip controllers
(3)Instrumentation and Industrial Low-Voltage Control
Portable testing instruments: Multimeters, thermometers, water quality testers, handheld oscilloscope probes; internal wiring and board-to-board low-signal interconnects
Small industrial control boards/controllers: Internal wiring for PLC expansion modules, temperature controllers, and sensor transmitters; signal lines for solenoid valves, microswitches, and photoelectric sensor probes
Office equipment: Copiers and printer toner cartridge testing; alignment sensors and fine-gauge feedback wires for paper-feed motors
(4)Micro-motors, robotics, and lightweight equipment for model aircraft
Internal wiring for micro gear motors, vibration motors, and servos; sensor cabling for gimbal and small robotic arm joints (designed for repeated bending and flex-resistance)
Lightweight FPV drones (under 250g) and model vehicles: signal wiring for flight controllers, GPS units, receivers, cameras, and LEDs (optimized for weight reduction and compact spaces)
Small service robots: internal wiring for infrared obstacle-avoidance sensors and touch-sensing modules
(5)Portable medical devices (low-voltage Class II circuits)
Internal low-signal wiring for blood glucose meters, fetal heart monitors, portable physiotherapy devices, and disposable diagnostic electrodes; suitable for internal device routing free from high temperatures or severe abrasion; tinned copper ensures long-term moisture resistance and oxidation prevention.
General internal wiring for other devices
Security systems: Internal board-to-board wiring for compact cameras, access control readers, and infrared alarm sensors.
Toys: Wiring for smart remote-controlled toys and connections between programmable robot mainboards and lighting, audio, or sensor modules.
Wire harness processing support: Multi-core color ribbon cable conductors, DuPont jumper wires, test fixture jumpers, and point-to-point wiring for experimental PCB prototypes.
