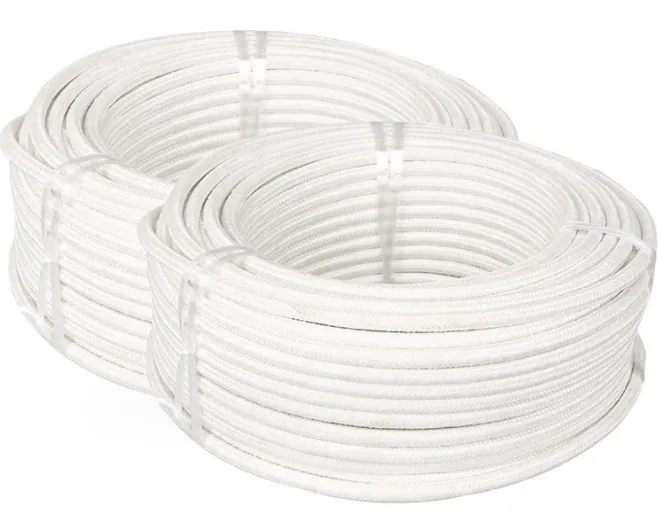

UL3122 belongs to the high-temperature resistant silicone wire series and is often used for wiring in high-temperature environments. Its conductor is tinned copper wire, paired with silicone rubber insulation and a woven layer of glass fiber and silicone resin. The rated voltage of the wire is 300V, and it can work stably in the low temperature range of -60 ℃ to high temperature range of 200 ℃. It comes in various colors, including black, white, red, etc. It has advantages such as wear resistance and high flame retardancy, and is suitable for internal connections in household appliances and industrial machines.
Feature
Condutor :Strands,tinned or bare copper
Insulation :Silicone rubber
Braid:Fiber glass braid
Reted Temperature:200℃
Reted Voltage:300Vac
Good thermal performance
Use cold extrusion processing
Or use the high temperature vulcanization process
Standard Reference:UL758-2014,UL1581-2014
Conductor Shielding Type:UNSHIELDED
Uniform thickness of wire to ensure easy stripping and cutting
Environmental testing pass ROHS/REACH
UL 26awg to 10awg
Strcture
Colors Available:ten kinds
Application
UL3122 wires are widely used in the field of lighting fixtures. Whether it is chandeliers in large shopping malls or household lamps and wall lights, UL3122 wires are often used for internal wiring. When the lighting fixture is working, a high temperature will be generated around the light source. UL3122 wires, with their working temperature range, can stably transmit power in high temperature environments, ensuring the normal illumination of the lighting fixture. At the same time, its wear-resistant characteristics can also avoid damage caused by line friction during the installation and maintenance of lamps, extending the service life of lamps. In terms of household appliances, such as ovens and microwaves, which generate a large amount of heat during operation, UL3122 wires are often used for internal connections to ensure stable and safe operation of the circuit under high temperature working conditions.
Our Service
3F sales and service network is available worldwide to ensure product professionalism and customer after-sales satisfaction. The company is committed to training professional customer service personnel to provide customers with perfect products and multi-directional professional services. ERP allows the marketing service system to access the order process anytime and anywhere to ensure smooth circulation and delivery.
01.
The proportion of various types of product sales
One-Stop Shopping
Quality,delivery,service,customer,eventually improvement, zero management defect.
Less resource to transmit more power.
02.
Market distribution
Being one of the best electronic components in the world.
Providing the best solution to customers all over the world.
More safety and Environment more harmonious.
Solution
FAQ
Q:1.Is UL3122 wire resistant to chemicals?
A:While it has some resistance, its resistance to chemicals depends on the specific chemical. The silicone rubber insulation and outer braided layer offer certain protection, but it may not be suitable for long - term exposure to highly corrosive chemicals. It's best to check with the manufacturer for specific chemical resistance data.
Q:2.Does UL3122 wire meet environmental protection requirements?
A:L3122 wires on the market meet certain environmental protection requirements. For example, they may be lead - free, which is in line with environmental regulations such as RoHS. However, it's crucial to check the product specifications provided by the manufacturer to ensure it meets specific environmental standards you need, as compliance can vary among different manufacturers and production batches.
|

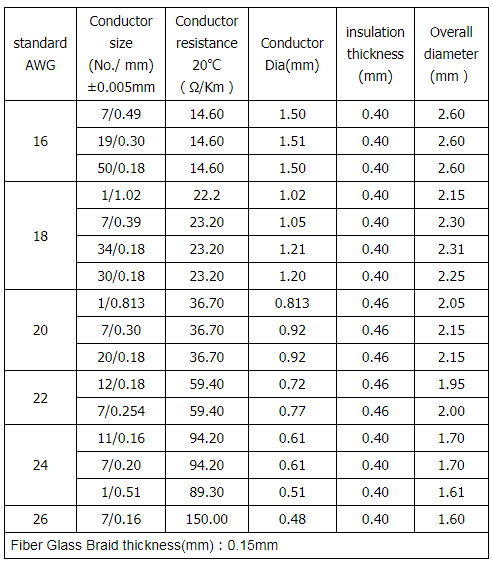

STYLE |
standard AWG |
Conductor size (No./ mm) ±0.005mm |
Conductor resistance 20℃ (Ω/Km) |
Conductor Dia.(mm) |
insulation thickness (mm) |
Overall diameter (mm) |
||
|
Nom |
Min |
Nom |
Tole |
|||||
|
3122 |
16 |
7/0.49 |
14.60 |
1.50 |
0.40 |
0.33 |
2.60 |
±0.15 |
|
19/0.30 |
14.60 |
1.51 |
0.40 |
0.33 |
2.60 |
±0.15 |
||
|
50/0.18 |
14.60 |
1.50 |
0.40 |
0.33 |
2.60 |
±0.15 |
||
|
18 |
1/1.02 |
22.2 |
1.02 |
0.40 |
0.33 |
2.15 |
±0.10 |
|
|
7/0.39 |
23.20 |
1.05 |
0.40 |
0.33 |
2.30 |
±0.10 |
||
|
34/0.18 |
23.20 |
1.21 |
0.40 |
0.33 |
2.31 |
±0.10 |
||
|
30/0.18 |
23.20 |
1.20 |
0.40 |
0.33 |
2.25 |
±0.10 |
||
|
20 |
1/0.813 |
36.70 |
0.813 |
0.46 |
0.33 |
2.05 |
±0.10 |
|
|
7/0.30 |
36.70 |
0.92 |
0.46 |
0.33 |
2.15 |
±0.10 |
||
|
20/0.18 |
36.70 |
0.92 |
0.46 |
0.33 |
2.15 |
±0.10 |
||
|
22 |
12/0.18 |
59.40 |
0.72 |
0.46 |
0.33 |
1.95 |
±0.10 |
|
|
7/0.254 |
59.40 |
0.77 |
0.46 |
0.33 |
2.00 |
±0.10 |
||
|
24 |
11/0.16 |
94.20 |
0.61 |
0.40 |
0.33 |
1.70 |
±0.10 |
|
|
7/0.20 |
94.20 |
0.61 |
0.40 |
0.33 |
1.70 |
±0.10 |
||
|
1/0.51 |
89.30 |
0.51 |
0.40 |
0.33 |
1.61 |
±0.10 |
||
|
26 |
7/0.16 |
150.00 |
0.48 |
0.40 |
0.33 |
1.60 |
±0.10 |
|
