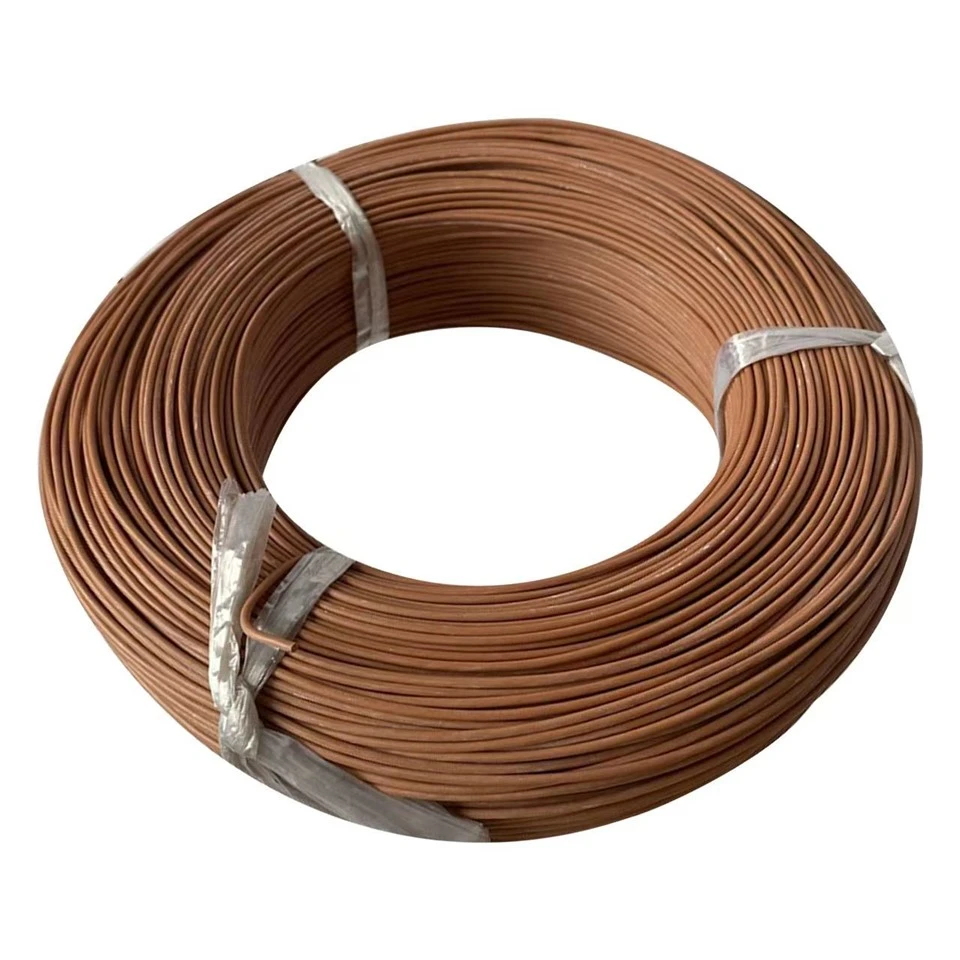

MIL-W-81044/6 U.S. Army Special Cable is a US military standard double-walled insulated single-core wire (SAE AS81044). The conductor can be tinned/silvered/nickel-plated copper. It features XLPE insulation and XLPVDF sheath, with a rated voltage of 600V and a temperature resistance range of -65℃ to 150℃. It possesses wear resistance, chemical corrosion resistance, low smoke, and flame retardant properties, making it suitable for wiring in extreme conditions such as aerospace, military vehicles, and ships. It also complies with RoHS standards.
Feature
Condutor:Strands Tinned/Nickel/Silver Copper
Insulation:XLPE
Jacket materials:XLPVDF
Reted Temperature:150℃
Reted Voltage:600Vac
Low temperature bending:-10℃±2℃/4H
No crack on the surface of the sample is qualified
Wear-resistant
Resistant to chemical corrosion
Passes UL VW-1 test
Passes CSA FT2 horizontal flame test
Environmental testing pass ROHS
Reference standard：MIL-W-81044
UL 24awg to 1/0awg
Application
MIL-W-81044/6 U.S. Army Special Cable, a US military standard double-walled insulated wire, relies on its 600V rated voltage, wide temperature tolerance from -65℃ to 150℃, wear resistance, and corrosion resistance. It is specifically designed for extreme working conditions in aerospace, military, and other industries. Its core applications are as follows:
Aerospace field
Used for the cabin control systems, avionics equipment, and engine peripheral wiring of military aircraft and civil passenger aircraft, MIL-W-81044/6 U.S. Army Special Cable is resistant to high-altitude low temperatures, sudden pressure changes, and mechanical vibrations, meeting the stringent safety requirements of aviation grade.
military equipment
Applied to power and control circuits of military vehicles such as armored vehicles and missile launch vehicles, as well as wiring on ship decks and inside cabins, MIL-W-81044/6 U.S. Army Special Cable is resistant to oil contamination, seawater corrosion, and physical wear from complex terrains.
Special industrial equipment
The internal wiring of equipment suitable for polar exploration, deep-sea exploration instruments, and metallurgical heavy-duty equipment can operate stably for extended periods in extreme industrial environments characterized by ultra-low temperatures, strong corrosion, and high mechanical shock.
High-end emergency equipment
MIL-W-81044/6 U.S. Army Special Cable is a type of connecting cable used for firefighting and rescue operations, as well as for outdoor emergency communication equipment. Its low-smoke and flame-retardant properties ensure safe wiring in hazardous scenarios, and its wide temperature adaptability allows it to withstand various harsh natural environments.
Structure
Standard Colors: Ten colors to choose
Our Factory
3F Electronics Industry Corp was established in 1996. The fields involved are: insulation materials, copper conductors, irradiation processing, wire harness processing, new energy, special cables, household cables, locomotive cables, communication cables, aerospace cables, insulating sleeves, cable accessories, etc.The group is headquartered at No. 6, Zhenxing Road, Science City, Guangming District, covering an area of 20,000 square meters and self-built factory buildings of 35,000 square meters.
01
Quality policy
Quality first, delivery guarantee, active service, customer first, step by step, zero defect management.
02
Social responsibility
Make our users products safer. Save resources and make the planet we live in a better and more harmonious place.
03
Corporate vision
Become a world-renowned supplier of electronic components, providing customers with satisfactory electronic solutions.
04
3F concern
High temperature resistance, high pressure resistance, ultra-thin, environmental protection.
Certification
IECQ
VDE
UL
CCC
SA
FAQ
Q:1.When can I get a quote?
A:We usually quote within 24 hours after we get your inquiry.
Q:2.Are you a manufacturer?
A: We are a manufacturer located in Shenzhen, Guangdong, China. Our company's sales and service network covers the whole world to guarantee the professionalism of products and the satisfaction of customers' after-sales service.
Q:3.What's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.
Technical Parameters
|
STYLE |
AWG |
Conductor size (No./ mm) ±0.005 |
Conductor Dia. (mm) |
thickness (mm) Nom. |
Overall diameter (mm) |
||
|
Insulation |
jacket |
nom. |
tole |
||||
|
M81044/6-24 |
24 |
19/0.127 |
0.64 |
0.27 |
0.10 |
1.38 |
±0.10 |
|
M81044/6-22 |
22 |
19/0.16 |
0.81 |
0.35 |
0.10 |
1.70 |
±0.10 |
|
M81044/6-20 |
20 |
19/0.203 |
1.02 |
0.35 |
0.10 |
1.92 |
±0.10 |
|
M81044/6-18 |
18 |
19/0.254 |
1.28 |
0.35 |
0.10 |
2.20 |
±0.10 |
|
M81044/6-16 |
16 |
19/0.287 |
1.45 |
0.38 |
0.10 |
2.40 |
±0.10 |
|
M81044/6-14 |
14 |
19/0.361 |
1.82 |
0.45 |
0.10 |
2.92 |
±0.15 |
|
M81044/6-12 |
12 |
37/0.374 |
2.63 |
0.45 |
0.15 |
3.83 |
±0.15 |
|
M81044/6-10 |
10 |
37/0.404 |
2.84 |
0.50 |
0.15 |
4.14 |
±0.15 |
|
M81044/6-8 |
8 |
7/19/0.287 |
3.82 |
0.70 |
0.15 |
5.52 |
±0.15 |
|
M8104466-6 |
6 |
7/19/0.361 |
4.80 |
0.80 |
0.20 |
6.80 |
±0.20 |
|
M81044/6-4 |
4 |
7/19/0.455 |
6.06 |
0.90 |
0.20 |
8.26 |
±0.20 |
|
M81044/6-2 |
2 |
19/35/0.254 |
7.86 |
1.20 |
0.25 |
10.76 |
±0.20 |
|
M81044/6-1 |
1 |
19/43/0.254 |
8.71 |
1.20 |
0.25 |
11.60 |
±0.20 |
|
M81044/6-1/0 |
1/0 |
19/55/0.254 |
10.67 |
1.20 |
0.25 |
13.50 |
±0.20 |
