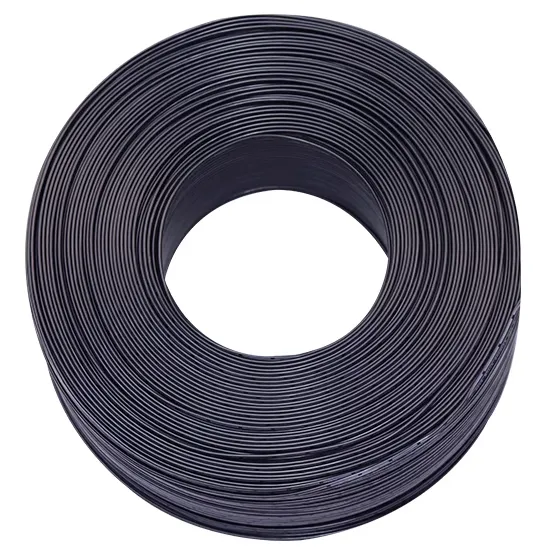

MIL-W-81044/12 High Voltage Wire is an aviation wire. The conductor material is tin plated copper, and the insulation material is usually modified radiation cross-linked PVDF or cross-linked polyolefin. The rated voltage is 600V and the working temperature can reach 150℃. It has characteristics such as wear resistance and corrosion resistance, and is suitable for aerospace and other fields.
Feature
Condutor:Strands Tinned/Nickel/Silver Copper
Insulation:XLPE
Jacket materials:XLPVDF
Reted Temperature:125℃
Reted Voltage:600Vac
Low temperature bending
Thin-wall
Can be twisted pair and multi-core
Light weight
Passes UL VW-1 test
Passes UL & CSA FT2 horizontal flame test
Environmental testing pass ROHS
Reference standard：MIL-W-81044
UL 24awg to 12awg
Application
MIL-W-81044/12 High Voltage Wire has the characteristics of lightweight and high temperature resistance, and is widely used.
In the aerospace field
It can be used for internal wiring connections of the aircraft body and wiring between aviation electronic devices, as MIL-W-81044/12 High Voltage Wire can work stably in high temperature environments and is lightweight, which can reduce the load on the aircraft.
In the military field
MIL-W-81044/12 High Voltage Wire is suitable for military vehicles, missiles, and other equipment. It can withstand harsh environments, possesses good wear resistance and corrosion resistance, ensuring the normal operation of production lines under complex working conditions
In terms of ships
MIL-W-81044/12 High Voltage Wire can be used for electrical systems in non watertight environments inside ships, meeting low smoke requirements and reducing the impact of smoke on personnel and equipment.
In some industrial fields that require high performance of wires
The instrument lines in high-temperature steelmaking environments, as well as the control lines in rail transit such as subways, can also leverage their advantages of high temperature resistance and wear resistance.
Structure
Standard Colors: black, white, red, yellow, green, blue, brown, grey, orange, violet
Our Factory
3F Electronics Industry Corp was established in 1996. The fields involved are: insulation materials, copper conductors, irradiation processing, wire harness processing, new energy, special cables, household cables, locomotive cables, communication cables, aerospace cables, insulating sleeves, cable accessories, etc.The group is headquartered at No. 6, Zhenxing Road, Science City, Guangming District, covering an area of 20,000 square meters and self-built factory buildings of 35,000 square meters.
01
Quality policy
Quality first, delivery guarantee, active service, customer first, step by step, zero defect management.
02
Social responsibility
Make our users products safer. Save resources and make the planet we live in a better and more harmonious place.
03
Corporate vision
Become a world-renowned supplier of electronic components, providing customers with satisfactory electronic solutions.
04
3F concern
High temperature resistance, high pressure resistance, ultra-thin, environmental protection.
Certification
IECQ
VDE
UL
CCC
SA
FAQ
Q:1.What is the delivery time for mass production?
A:Production lead time: 20~30 days.
Q:2.What is your terms of delivery?
A:We accept EXW, FOB, CFR, CIF. You can choose the one which is the most convenient or cost effective for you.
Technical Parameters
|
STYLE
|
AWG
|
Conductor size (No./ mm) ±0.005
|
Conductor Dia. (mm)
|
Thickness (mm) Nom. |
Overall diameter (mm) |
||
|
Insulation |
Jacket |
Nom. |
Tole. |
||||
|
M81044/12-24 |
24 |
19/0.127 |
0.64 |
0.24 |
0.10 |
1.32 |
±0.10 |
|
M81044/12-22 |
22 |
19/0.16 |
0.81 |
0.24 |
0.10 |
1.50 |
±0.10 |
|
M81044/12-20 |
20 |
19/0.20 |
1.00 |
0.24 |
0.10 |
1.68 |
±0.10 |
|
M81044/12-18 |
18 |
19/0.254 |
1.28 |
0.24 |
0.10 |
1.96 |
±0.10 |
|
M81044/12-16 |
16 |
19/0.287 |
1.44 |
0.24 |
0.10 |
2.12 |
±0.10 |
|
M81044/12-14 |
14 |
29/0.3 |
1.87 |
0.35 |
0.10 |
2.77 |
±0.15 |
|
M81044/12-12 |
12 |
37/0.32 |
2.25 |
0.35 |
0.10 |
3.15 |
±0.15 |
