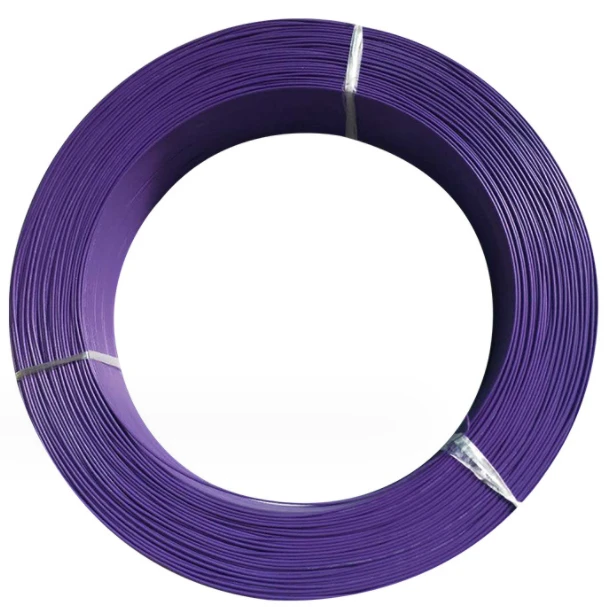

UL10504 Hook up Wire (AWM Style 10504) is a hook up wire for internal wiring of appliances that complies with the UL 758 standard. The insulation layer is ETFE (ethylene tetrafluoroethylene), with a rated temperature of 150℃ and a rated voltage of 600V. It has passed the UL VW-1 vertical combustion test and is resistant to chemical corrosion and aging. Mainly used for internal connections of electrical appliances, instruments, industrial control equipment, and electronic devices in high-temperature environments, in compliance with RoHS environmental requirements.
Feacture
Condutor:Tinned/ Sliver/ Nickel copper,Strands
Insulation:ETFE
Reted Temperature:150℃
Reted Voltage:600Vac
Combustion Test:passes UL VW-1 flame test
Using the Half extrusion processing
Can be twisted pair and multi-core
Low smoke
Long-term ageing resistance
Standard Reference：UL 758,UL1581
Environmental testing pass ROHS
UL 30awg to 10awg
Application
Consumer Electronics and Precision Instruments
UL10504 Hook up Wire is used for signal and power wiring in compact spaces such as high-end speakers, power adapters, printers, measuring instruments, etc. ETFE has a small outer diameter and low dielectric loss, making it convenient for high-density wiring.
Automotive Electronics and Specialty Fields
Some automotive electronic modules, drones, and aviation models will use UL10504 Hook up Wire for internal wiring, taking advantage of its vibration resistance, fuel resistance, and lightweight characteristics (it needs to be confirmed whether specific AWM usage conditions are allowed).
Industrial automation and measurement and control equipment
UL10504 Hook up Wire is used for internal connections in PLC control cabinets, servo drives, thermostats, industrial robot joint modules, and industrial instruments. ETFE thin-walled insulation is resistant to high temperatures of 150 ℃, oil stains, acid and alkali, and is suitable for industrial sites that generate heat during long-term operation.
Household appliances and electric heating products
UL10504 Hook up Wire is used for connecting internal live parts of heating appliances such as microwave ovens, ovens, coffee machines, and heaters, as well as wiring between LED lighting driver power boards and ballasts, utilizing its VW-1 flame retardant and heat-resistant aging characteristics.
Structure
Standard Colors : BLACK, WHITE, RED, YELLOW, GREEN, BLUE, BROWN, GREY, ORANGE, VIOLET
Solution
One-Stop Shopping
FAQ
Q:1.How your quality guarantee?
A: At present, 80% of our products are exported all over the world. Our well-equipped facilities and superior quality control At all stages of production, we are able to guarantee complete customer satisfaction.
Q:2.Are you a manufacturer?
A: We are a manufacturer located in Shenzhen, Guangdong, China. Our company's sales and service network covers the whole world to guarantee the professionalism of products and the satisfaction of customers' after-sales service.
Q:3.Are your wires ROHS compliant?
A: All our wires are ROHS compliant.
Technical Parameters
|
STYLE |
standard AWG |
Conductor size (No./ mm) ±0.005mm |
Conductor resistance 20℃ (Ω/Km) |
Conductor Dia. (mm) |
insulation thickness (mm) |
Overall diameter (mm) |
||
|
Nom |
Min |
Mon |
Tol |
|||||
|
10504 |
10 |
37/0.42 |
3.54 |
2.94 |
0.30 |
0.27 |
3.54 |
±0.15 |
|
12 |
37/0.374 |
5.64 |
2.62 |
0.30 |
0.27 |
3.22 |
±0.15 |
|
|
14 |
19/0.361 |
8.96 |
1.85 |
0.30 |
0.27 |
2.41 |
±0.15 |
|
|
16 |
19/0.287 |
14.60 |
1.50 |
0.30 |
0.27 |
2.04 |
±0.10 |
|
|
18 |
19/0.235 |
23.20 |
1.18 |
0.30 |
0.27 |
1.78 |
±0.10 |
|
|
20 |
19/0.19 |
36.70 |
0.95 |
0.15 |
0.13 |
1.25 |
±0.10 |
|
|
22 |
19/0.15 |
59.40 |
0.76 |
0.15 |
0.13 |
1.06 |
±0.10 |
|
|
24 |
7/0.20 |
94.20 |
0.60 |
0.15 |
0.13 |
0.90 |
±0.10 |
|
|
26 |
7/0.16 |
150.00 |
0.48 |
0.15 |
0.13 |
0.80 |
±0.10 |
|
|
28 |
7/0.127 |
239.00 |
0.38 |
0.15 |
0.13 |
0.70 |
±0.10 |
|
|
30 |
1/0.254 |
361.00 |
0.254 |
0.15 |
0.13 |
0.55 |
±0.10 |
|
