UL1516 is an electronic wire that uses ETFE insulation. Its rated temperature is 105℃, rated voltage is 30V, and it has good electrical insulation performance, chemical resistance, and flame retardancy. It meets ROHS/REACH standards and is suitable for wiring in parts of electrical equipment that are not mechanically damaged.
Feature
Condutor:Tinned/ Sliver/ Nickel copper,Strands
Insulation:ETFE
Reted Temperature:105℃
Reted Voltage:30Vac
Excellent thermal stability
Long-term ageing resistance
Suitable for water, fuel, oil, acid and alkali environment
Low smoke
Standard Reference：UL 758,UL1581
Environmental testing pass ROHS
UL 30wg to 10awg
Application
UL1516 wires play an important role in many fields due to their excellent performance.
In the field of electronic devices
Commonly used for internal wiring of computers, tablets, smartphones, etc., connecting motherboards and various functional modules. Its excellent electrical insulation performance can effectively prevent signal interference and ensure fast and accurate data transmission.
In terms of industrial equipment
Suitable for instruments, industrial controllers, etc. For example, detection instruments in chemical production are often in complex chemical environments, and UL1516 wire's chemical resistance ensures stable circuit and accurate data collection.
In household appliances
Air conditioning, microwave ovens, ovens, etc. are also used. These appliances may generate heat during operation, and the rated temperature of 105 ℃ allows the wires to work normally in high temperature environments. At the same time, their flame retardancy also adds security to the use of household appliances.
Structure
Ten colors to choose
Certification
IECQ
VDE
UL
CCC
SA

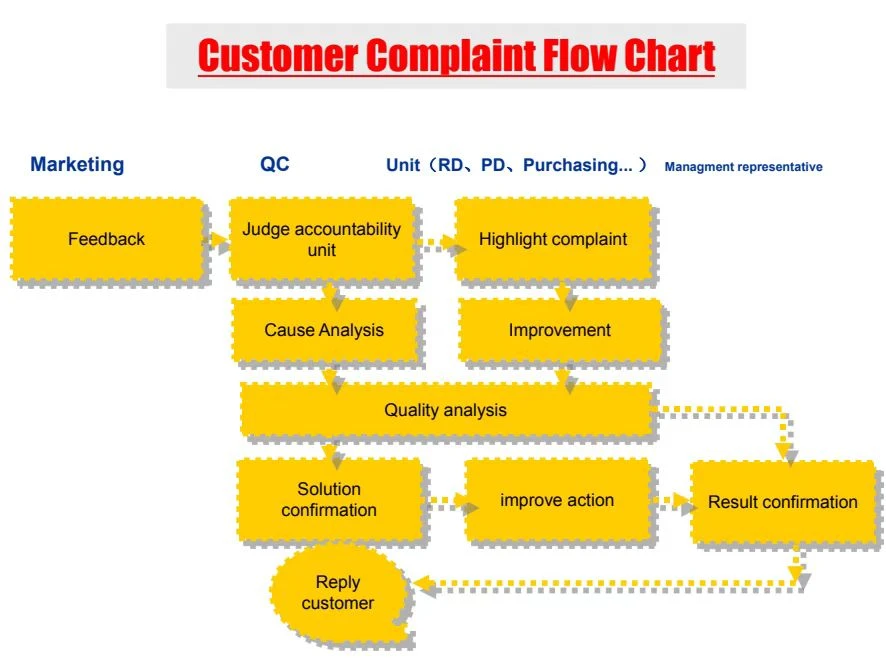

Solution
FAQ
Q:1.Are you a manufacturer?
A:We are a manufacturer located in Shenzhen, Guangdong, China. Our company's sales and service network covers the whole world to guarantee the professionalism of products and the satisfaction of customers' after-sales service.
Q:2.What's is your shipping service?
A:We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.
Q:3.What is the delivery time for mass production?
A:About 20 to 30 days.
Technical Parameters
|
STYLE |
standard AWG |
Conductor size (No./ mm) ±0.005mm |
Conductor resistance 20℃ (Ω/Km) |
Conductor Dia. (mm) |
insulation thickness (mm) |
Overall diameter (mm) |
||
|
Nom. |
Min. |
Mon. |
Tol. |
|||||
|
1516 |
10 |
37/0.42 |
3.54 |
2.94 |
0.30 |
0.24 |
3.54 |
±0.15 |
|
19/0.61 |
3.54 |
3.07 |
0.30 |
0.24 |
3.67 |
±0.15 |
||
|
12 |
37/0.374 |
5.64 |
2.62 |
0.30 |
0.24 |
3.22 |
±0.15 |
|
|
14 |
19/0.361 |
8.96 |
1.85 |
0.30 |
0.24 |
2.41 |
±0.15 |
|
|
16 |
19/0.287 |
14.60 |
1.50 |
0.30 |
0.24 |
2.04 |
±0.10 |
|
|
18 |
19/0.235 |
23.20 |
1.18 |
0.30 |
0.24 |
1.78 |
±0.10 |
|
|
20 |
19/0.19 |
36.70 |
0.95 |
0.15 |
0.12 |
1.25 |
±0.10 |
|
|
22 |
19/0.15 |
59.40 |
0.76 |
0.15 |
0.12 |
1.06 |
±0.10 |
|
|
24 |
7/0.20 |
94.20 |
0.60 |
0.15 |
0.12 |
0.90 |
±0.10 |
|
|
26 |
7/0.16 |
150.00 |
0.48 |
0.15 |
0.12 |
0.78 |
±0.10 |
|
|
28 |
7/0.127 |
239.00 |
0.38 |
0.15 |
0.12 |
0.68 |
±0.10 |
|
|
30 |
1/0.254 |
361.00 |
0.254 |
0.15 |
0.12 |
0.56 |
±0.10 |
|
