UL10504 is an internal connection wire for instruments and equipment that complies with the UL758 standard. The conductor is twisted tin plated, silver or nickel copper, and the insulation layer is ETFE material. The rated temperature is 150℃ and the voltage is 600V. The conductor specification is 30-10AWG, flame retardant and in compliance with ROHS standards, suitable for internal wiring of electrical and electronic equipment that is not subject to mechanical damage.
Feature
Condutor:Tinned/ Sliver/ Nickel copper,Strands
Insulation:ETFE
Reted Temperature:150℃
Reted Voltage:600Vac
Combustion Test:passes UL VW-1 flame test
Electrical insulation good
High resistance to chemicals
Can be twisted pair and multi-core
Long-term ageing resistance
Standard Reference：UL 758,UL1581
Environmental testing pass ROHS
UL 30awg to 10awg
Application
In the industrial sector
It is suitable for industrial automation controllers, internal wiring of instruments and meters operating at high temperatures, and can also be used for precision circuits inside robots, which can withstand high temperatures during equipment operation.
In the field of consumer electronics
It is commonly used in the internal circuits of high-end audio systems, precision power adapters, and other equipment to adapt to the compact space and heating environment inside the device, avoiding circuit aging caused by high temperatures.
In the internal wiring of medical auxiliary electronic devices
Like small diagnostic instruments, their stable electrical performance can meet the strict requirements of medical equipment for circuit safety and reliability, while also complying with relevant environmental and safety standards.
Structure
Ten colors to choose
Our Factory
One-stop Wire&Cable Factory in China
Founded in 1996, it has become an iconic global brand that improves people's lives through thoughtful design and superior innovation, delivering wire and cable products to more than 70 countries around the world.

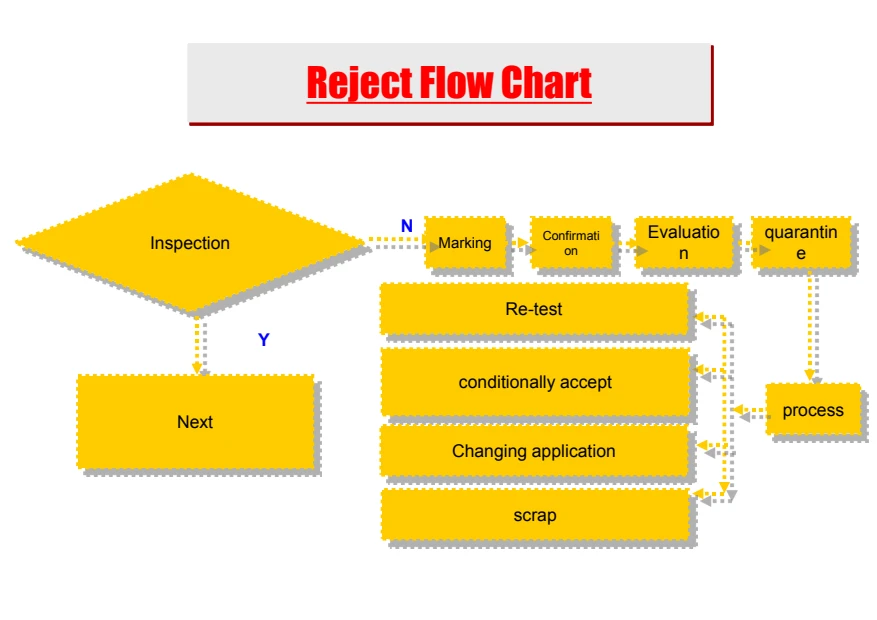

Solution
FAQ
Q:1.When can I get a quote?
A:We usually quote within 24 hours after we get your inquiry.
Q:2.Are you a manufacturer?
A: We are a manufacturer located in Shenzhen, Guangdong, China. Our company's sales and service network covers the whole world to guarantee the professionalism of products and the satisfaction of customers' after-sales service.
Q:3.Are your wires ROHS compliant?
A: All our wires are ROHS compliant.
Technical Parameters
|
STYLE |
standard AWG |
Conductor size (No./ mm) ±0.005mm |
Conductor resistance 20℃ (Ω/Km) |
Conductor Dia. (mm) |
insulation thickness (mm) |
Overall diameter (mm) |
||
|
Nom |
Min |
Mon |
Tol |
|||||
|
10504 |
10 |
37/0.42 |
3.54 |
2.94 |
0.30 |
0.27 |
3.54 |
±0.15 |
|
12 |
37/0.374 |
5.64 |
2.62 |
0.30 |
0.27 |
3.22 |
±0.15 |
|
|
14 |
19/0.361 |
8.96 |
1.85 |
0.30 |
0.27 |
2.41 |
±0.15 |
|
|
16 |
19/0.287 |
14.60 |
1.50 |
0.30 |
0.27 |
2.04 |
±0.10 |
|
|
18 |
19/0.235 |
23.20 |
1.18 |
0.30 |
0.27 |
1.78 |
±0.10 |
|
|
20 |
19/0.19 |
36.70 |
0.95 |
0.15 |
0.13 |
1.25 |
±0.10 |
|
|
22 |
19/0.15 |
59.40 |
0.76 |
0.15 |
0.13 |
1.06 |
±0.10 |
|
|
24 |
7/0.20 |
94.20 |
0.60 |
0.15 |
0.13 |
0.90 |
±0.10 |
|
|
26 |
7/0.16 |
150.00 |
0.48 |
0.15 |
0.13 |
0.80 |
±0.10 |
|
|
28 |
7/0.127 |
239.00 |
0.38 |
0.15 |
0.13 |
0.70 |
±0.10 |
|
|
30 |
1/0.254 |
361.00 |
0.254 |
0.15 |
0.13 |
0.55 |
±0.10 |
|
