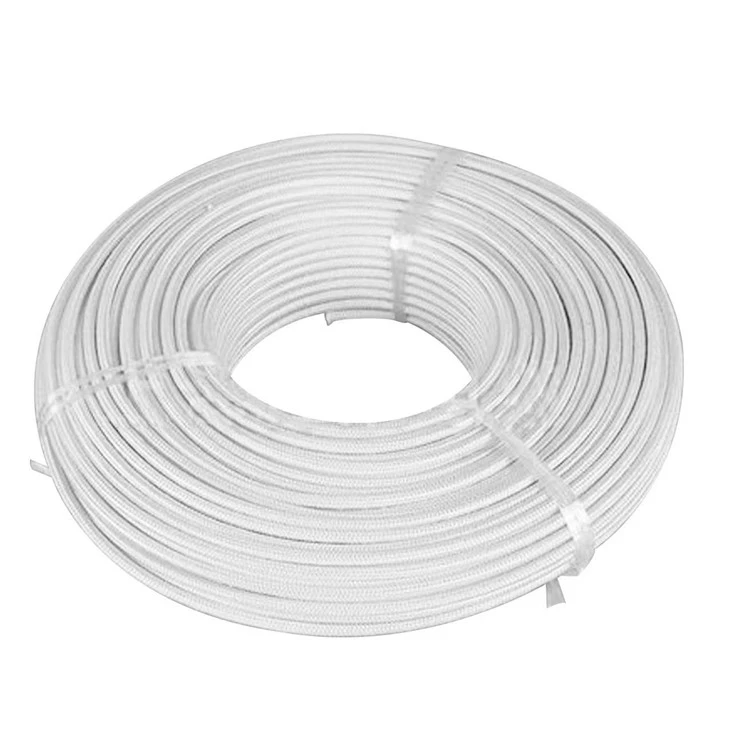

UL3512 wires comply with UL758 standard, and the conductors are made of solid core or stranded tinned copper wire to ensure excellent conductivity. The insulation layer is made of silicone rubber material, which endows the wire with excellent high temperature resistance and can work stably in the temperature range of -60℃ to 200℃. It also has good low temperature resistance, fire resistance, wear resistance, and corrosion resistance. It has passed UL VW-1 and CSA FT1 vertical flame resistance tests and is commonly used for wiring in high-temperature environments such as lighting fixtures and household appliances.
Feature
Condutor:Strands Tinned/Bare Copper
Insulation:Silicone rubber
Reted Temperature:200℃
Reted Voltage:600Vac
Good adsorption ability
Good heat resistance
Has the very high resistivity
Harness processing process good compatibility
Reference standard：UL758,UL1581
Environmental testing pass ROHS
UL 4/0awg to 22awg
Application
UL3512 wire has been widely used in various fields due to its excellent performance. In household appliances, such as electric ovens, electric kettles, and other high-temperature working appliances, it is often selected for internal wiring. Its high temperature resistance of 200 ℃ ensures stable power transmission in the heating environment of the appliances, and can resist the oil and water vapor erosion that may be encountered in daily life, ensuring safety and longevity of use. In terms of lighting fixtures, especially some industrial high-temperature fixtures or outdoor lighting equipment that needs to work in harsh environments, UL3512 wires have excellent electrical insulation and weather resistance, which can prevent leakage and withstand wind, sun, rain, and frost. In the industrial field, it is used for the internal wiring of many industrial machines, such as equipment wiring next to furnaces in the metallurgical industry. This wire has high and low temperature resistance, wear resistance, corrosion resistance and other characteristics, making it suitable for complex industrial environments, maintaining stable machine operation, and reducing downtime losses caused by line failures.
Structure
Colors Available: BLACK, WHITE, RED, YELLOW, GREEN, BLUE, BROWN, GREY, ORANGE, VIOLET
Package Type：500Ft/roll, 1000Ft/roll, 2000Ft/roll.
Solution
Welcome to consult us!
Partners
FAQ
Q:1.What is the delivery time for mass production?
A:Production lead time: 20~30 days.
Q:2.What is your terms of delivery?
A:We accept EXW, FOB, CFR, CIF. You can choose the one which is the most convenient or cost effective for you.
|
STYLE
|
standard AWG
|
Conductor size (No./ mm) ±0.005mm
|
Conductor resistance 20℃ (Ω/Km)
|
Conductor Dia.(mm)
|
insulation thickness (mm) |
Overall diameter (mm) |
||
|
Nom. |
Min. |
Nom. |
Tole. |
|||||
|
|
4/0 |
19/44/0.404 |
0.172 |
15.48 |
2.41 |
2.16 |
20.50 |
±0.30 |
|
3/0 |
7/37/0.643 |
0.219 |
13.55 |
2.03 |
1.93 |
17.60 |
±0.30 |
|
|
2/0 |
19/70/0.254 |
0.277 |
12.26 |
2.03 |
1.93 |
16.32 |
±0.30 |
|
|
1/0 |
19/55/0.254 |
0.349 |
10.88 |
2.03 |
1.93 |
14.94 |
±0.30 |
|
|
1 |
19/44/0.254 |
0.440 |
9.72 |
2.03 |
1.93 |
13.78 |
±0.20 |
|
|
2 |
7/95/0.254 |
0.555 |
8.58 |
1.52 |
1.37 |
11.62 |
±0.20 |
|
|
4 |
7/60/0.254 |
0.882 |
6.82 |
1.52 |
1.37 |
9.86 |
±0.20 |
|
|
5 |
7/46/0.254 |
1.113 |
5.97 |
1.52 |
1.37 |
9.01 |
±0.15 |
|
|
6 |
7/38/0.254 |
1.403 |
5.41 |
1.52 |
1.37 |
8.45 |
±0.15 |
|
|
7 |
7/30/0.254 |
1.768 |
4.82 |
1.52 |
1.37 |
7.86 |
±0.15 |
|
|
8 |
168/0.254 |
2.230 |
3.80 |
1.15 |
1.02 |
6.10 |
±0.15 |
|
|
10 |
105/0.254 |
3.540 |
3.00 |
1.15 |
1.02 |
5.30 |
±0.15 |
|
|
12 |
65/0.254 |
5.64 |
2.36 |
0.78 |
0.69 |
3.95 |
±0.15 |
|
|
12 |
19/0.50 |
5.64 |
2.50 |
0.78 |
0.69 |
4.06 |
±0.15 |
|
|
14 |
7/0.616 |
8.96 |
1.90 |
0.78 |
0.69 |
3.46 |
±0.15 |
|
|
14 |
41/0.254 |
8.96 |
1.90 |
0.78 |
0.69 |
3.46 |
±0.15 |
|
|
16 |
7/0.49 |
14.60 |
1.50 |
0.78 |
0.69 |
3.06 |
±0.15 |
|
|
18 |
7/0.39 |
23.20 |
1.19 |
0.78 |
0.69 |
2.75 |
±0.15 |
|
|
20 |
7/0.30 |
36.70 |
0.92 |
0.78 |
0.69 |
2.48 |
±0.10 |
|
|
22 |
7/0.254 |
59.40 |
0.76 |
0.78 |
0.69 |
2.32 |
±0.10 |
|
