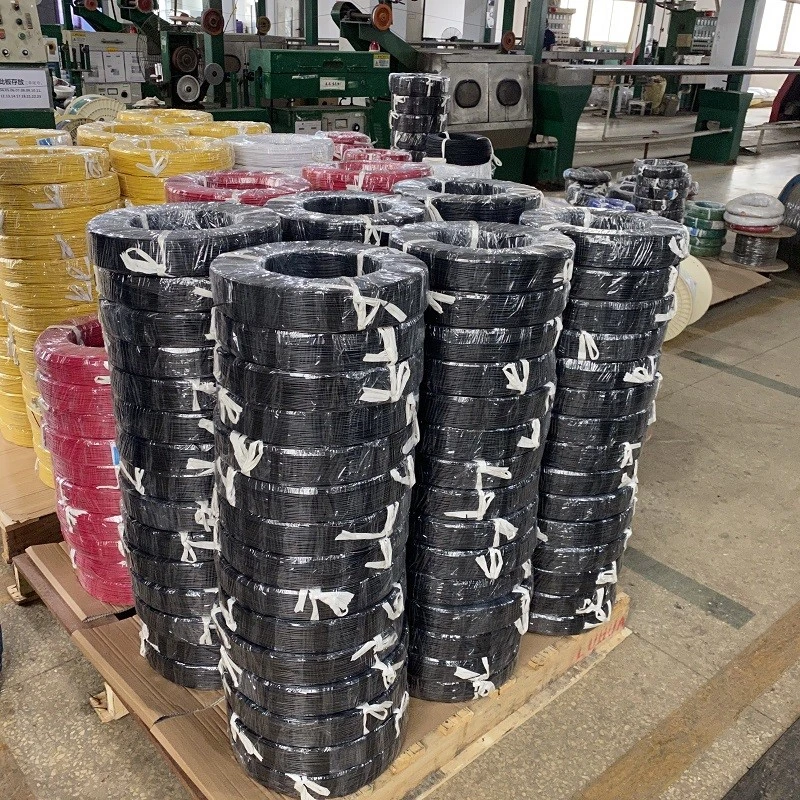

MIL-W-22759/11 is a high quality pipe that meets U.S. military standards and is suitable for high temperatures and high reliability requirements. Characteristic is the structural design of conductors, insulation materials and other materials. The applications are aimed at aerospace and other areas that require stringent performance, as follows:
Core Features
Excellent conductivity and mechanical properties
The conductor is made of silver plated copper stranded wire. The silver coating not only significantly reduces resistance and improves conductivity efficiency, but also enhances the oxidation resistance of the conductor, avoiding the impact of copper conductor oxidation and corrosion on conductivity during long-term use; The twisted wire structure makes the wires more flexible, making it easier to bend and route in narrow spaces, while also resisting mechanical damage caused by vibration, making it suitable for equipment installation in vibration environments.
Excellent temperature resistance and flame retardancy
The insulation layer is made of PTFE (polytetrafluoroethylene) material, and the long-term use temperature range of this wire can reach -55℃ -200℃, which can adapt to extreme high and low temperature conditions. And PTFE has non combustible properties, MIL-W-22759/11 can extinguish itself when leaving the flame, and can also resist high temperatures when in contact with an electric soldering iron, avoiding insulation layer shrinkage and melting during welding operations, and reducing smoke release in fire scenarios.
Electrical and chemical resistance reliability
The rated voltage has reached 600 V, which can meet the voltage requirements of most industrial and aviation equipment. The strength of the insulating PTFE volumetric layer can be reached in 10¹ ohm·cm, the low dielectric deficiency, high wear voltage and electrical insulation proof does not affect the environment and strange. In addition, PTFE can withstand most chemical reagents except molten alkaline metals, and its validation and weight do not change even in highly melancholic environments such as concentrated sulfuric acid and aqua regia. This is not most solutions.
Lightweight and wear-resistant
This wire features a thin-walled PTFE insulation, which contributes to its compact overall dimensions and significantly reduces its weight. This design not only saves valuable installation space but also lessens the overall load on equipment, making it an ideal choice for weight-sensitive applications. Simultaneously, the thin yet robust PTFE insulation offers excellent wear resistance. It can withstand environments with high mechanical friction, effectively protecting the conductor, which helps prolong the wire's operational lifespan even under demanding conditions. Its reliable, long-lasting performance ensures consistent and safe operation.
Main applications
Aerospace field
This is its core application area, such as the wiring around aircraft engines. This area has both high temperature environment and continuous vibration, and strict requirements for equipment weight and space. This wire can adapt to these working conditions; It is also used for internal wiring of aircraft instruments, control panels, and onboard electronic equipment to ensure stable operation of electrical systems in extreme flight environments.
Defense electronic equipment
MIL-W-22759/11 is suitable for internal wiring of military radar, military communication equipment, as well as weapons and equipment such as ships and tanks. These devices are often exposed to complex and harsh environments, such as high humidity salt spray on ships and high temperature vibration on tanks. Their chemical resistance and resistance to mechanical damage ensure reliable transmission of circuits.
High end industrial equipment
MIL-W-22759/11 can be used for the internal control of industrial instruments and precision electronic equipment under high temperature conditions, such as control circuits for corrosion resistant test instruments and high temperature processing equipment in the chemical industry; In addition, it is also suitable for wires of electronic units requiring welding operations, which can avoid damage to the insulating layer of wires due to high welding temperatures.
