UL3484 is a tin plated/bare copper conductor wire with insulation material of EPDM. Its rated temperature is 125℃, rated voltage is 600V, and it has good electrical insulation performance, mechanical performance, and aging resistance. It complies with ROHS/REACH standards.
Feature
Condutor:Strands Tinned/Bare Copper
Insulation:EPDM
Reted Temperature:125℃
Reted Voltage:600Vac
Internal Wiring of Lighting Fixtures
Using the hot extrusion processing
Appliances or Electronic Equipment where exposed to temperatures not exceeding 125℃
High resistance to chemicals
Reference standard：UL758-2010,UL1581-2009
Environmental testing pass ROHS
UL 30awg to 4/0awg
Application
UL3484 wires are mainly used for internal wiring of lighting fixtures, electrical appliances, and electronic products, and are suitable for environments with temperatures not exceeding 125℃.
In electronic products
Such as computers, tablets, etc., this wire can be used for connecting internal circuit boards and modules, meeting their requirements for efficient and stable signal transmission.
In terms of electrical appliances
UL3484 wires can withstand the vibration and temperature changes during the operation of appliances such as refrigerators, air conditioners, washing machines, etc., ensuring their normal operation.
In the field of lighting
It can be used to connect various components of lighting fixtures, such as the connection between LED beads and driving power sources, ensuring stable power transmission and ensuring the safety and stability of lighting fixtures during long-term use.
Structure
Multiple colors to choose
Certification
IECQ
VDE
UL

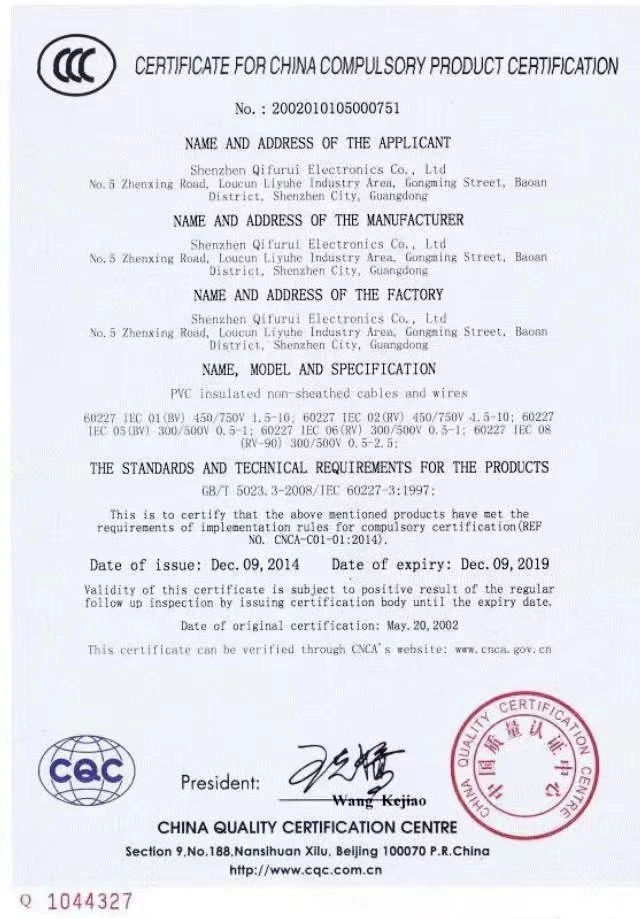

CCC
SA
Solution
FAQ
Q:3.What is the delivery time for mass production?
A:About 20 to 30 days.
Q:5.How your quality guarantee?
A: At present, 80% of our products are exported all over the world. Our well-equipped facilities and superior quality control At all stages of production, we are able to guarantee complete customer satisfaction.
Q:7.Are your wires ROHS compliant?
A: All our wires are ROHS compliant.
Technical Parameters
|
STYLE |
standard AWG |
Conductor size (No./ mm) ±0.005mm |
Conductor resistance 20℃ (Ω/Km) |
Conductor Dia. (mm) |
insulation thickness (mm) |
Overall diameter (mm) |
||
|
Nom. |
Min. |
Min |
Max |
|||||
|
3484 |
4/0 |
19/44/0.404 |
0.172 |
15.48 |
2.03 |
1.83 |
19.54 |
±0.25 |
|
3/0 |
7/37/0.643 |
0.219 |
13.54 |
2.03 |
1.83 |
17.60 |
±0.25 |
|
|
2/0 |
19/70/0.254 |
0.277 |
12.26 |
2.03 |
1.83 |
16.32 |
±0.25 |
|
|
1/0 |
19/55/0.254 |
0.349 |
10.88 |
2.03 |
1.83 |
14.95 |
±0.25 |
|
|
1 |
19/44/0.254 |
0.440 |
9.72 |
2.03 |
1.83 |
13.78 |
±0.25 |
|
|
2 |
7/95/0.254 |
0.555 |
8.56 |
1.52 |
1.37 |
11.60 |
±0.20 |
|
|
4 |
7/60/0.254 |
0.882 |
6.81 |
1.52 |
1.37 |
9.85 |
±0.20 |
|
|
6 |
7/38/0.254 |
1.403 |
5.41 |
1.52 |
1.37 |
8.45 |
±0.20 |
|
|
08 |
168/0.254 |
2.23 |
3.80 |
1.15 |
1.04 |
6.10 |
±0.15 |
|
|
10 |
105/0.254 |
3.54 |
3.00 |
0.80 |
0.69 |
4.60 |
±0.15 |
|
|
12 |
65/0.254 |
5.64 |
2.36 |
0.80 |
0.69 |
3.95 |
±0.15 |
|
|
14 |
41/0.254 |
8.96 |
1.88 |
0.80 |
0.69 |
3.50 |
±0.15 |
|
|
16 |
26/0.254 |
14.60 |
1.50 |
0.80 |
0.69 |
3.10 |
±0.15 |
|
|
18 |
16/0.254 |
23.20 |
1.17 |
0.80 |
0.69 |
2.75 |
±0.10 |
|
|
20 |
21/0.18 |
36.70 |
0.95 |
0.80 |
0.69 |
2.55 |
±0.10 |
|
|
22 |
17/0.16 |
59.40 |
0.76 |
0.80 |
0.69 |
2.35 |
±0.10 |
|
|
24 |
11/0.16 |
94.20 |
0.61 |
0.80 |
0.69 |
2.20 |
±0.10 |
|
|
26 |
7/0.16 |
150.00 |
0.48 |
0.80 |
0.69 |
2.08 |
±0.10 |
|
|
28 |
7/0.127 |
239.00 |
0.38 |
0.80 |
0.69 |
1.98 |
±0.10 |
|
|
30 |
7/0.10 |
381.00 |
0.30 |
0.80 |
0.69 |
1.90 |
±0.10 |
|
