UL3478 is a cross-linked ethylene propylene rubber insulated wire with a rated temperature of 125℃ and a rated voltage of 600V. Its conductor is a single or stranded 30-40/0AWG tin plated or bare copper, which complies with ROHS environmental standards and has passed CSA FT2 flame retardant testing. It is commonly used as an internal connection wire for electronic and electrical equipment.
Feature
Condutor:Strands Tinned/Bare Copper
Insulation:EPDM
Reted Temperature:125℃
Reted Voltage:600Vac
Passes FT2–LF–flame test
The fine aging resistance andresistance to water vapor
Low density high filling ability
In the 200℃ can be short or intermittent use
Reference standard：UL758-2010,UL1581-2009
Environmental testing pass ROHS
UL 30awg to 4/0awg
Application
In the field of household appliances
It can be used for internal wiring of air conditioning, warming appliances, dining utensils, etc., such as air conditioning valve coil leads, which can adapt to temperature changes during electrical operation.
01
In terms of lighting fixtures
UL3478 wires can be used as internal connecting wires to ensure the stable operation of the electrical system of the fixtures.
02
In the field of electronic devices
It can be used for circuit connections inside various electronic devices, and due to its uniform insulation thickness, it is convenient for the assembly and maintenance of electronic devices.
03
In the automotive industry
UL3478 wires can be used for wiring electronic systems inside cars, and can withstand vibrations and temperature changes during car operation.
04
Structure
Ten colors to choose
Certification
IECQ
VDE
UL
CCC
SA
Solution
FAQ
Q:1.What is the delivery time for mass production?
A:Production lead time: 20~30 days.
Q:4.When can I get a quote?
A:We usually quote within 24 hours after we get your inquiry.
Q:3.What's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.

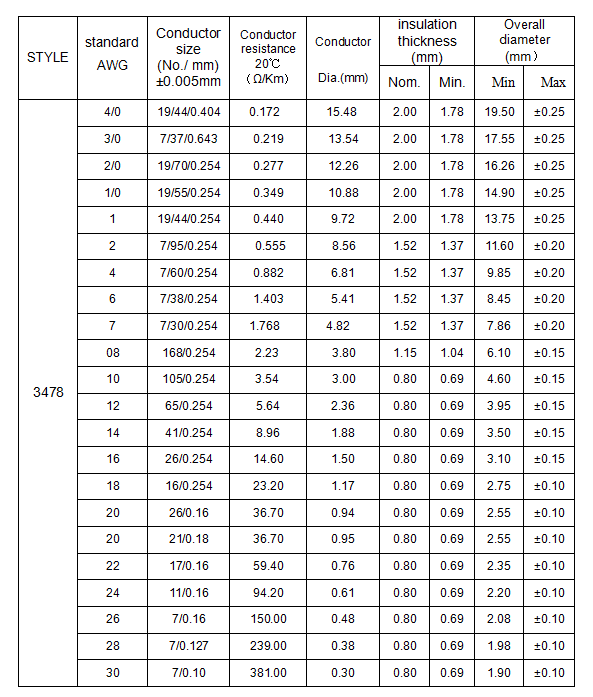

Technical Parameters
| STYLE |
standard AWG |
Conductor size (No./ mm) ±0.005mm |
Conductor resistance 20℃ (Ω/Km) |
Conductor Dia. (mm) |
insulation thickness (mm) |
Overall diameter (mm) |
||
|
Nom. |
Min. |
Min |
Max |
|||||
|
3478 |
4/0 |
19/44/0.404 |
0.172 |
15.48 |
2.00 |
1.78 |
19.50 |
±0.25 |
|
3/0 |
7/37/0.643 |
0.219 |
13.54 |
2.00 |
1.78 |
17.55 |
±0.25 |
|
|
2/0 |
19/70/0.254 |
0.277 |
12.26 |
2.00 |
1.78 |
16.26 |
±0.25 |
|
|
1/0 |
19/55/0.254 |
0.349 |
10.88 |
2.00 |
1.78 |
14.90 |
±0.25 |
|
|
1 |
19/44/0.254 |
0.440 |
9.72 |
2.00 |
1.78 |
13.75 |
±0.25 |
|
|
2 |
7/95/0.254 |
0.555 |
8.56 |
1.52 |
1.37 |
11.60 |
±0.20 |
|
|
4 |
7/60/0.254 |
0.882 |
6.81 |
1.52 |
1.37 |
9.85 |
±0.20 |
|
|
6 |
7/38/0.254 |
1.403 |
5.41 |
1.52 |
1.37 |
8.45 |
±0.20 |
|
|
7 |
7/30/0.254 |
1.768 |
4.82 |
1.52 |
1.37 |
7.86 |
±0.20 |
|
|
08 |
168/0.254 |
2.23 |
3.80 |
1.15 |
1.04 |
6.10 |
±0.15 |
|
|
10 |
105/0.254 |
3.54 |
3.00 |
0.80 |
0.69 |
4.60 |
±0.15 |
|
|
12 |
65/0.254 |
5.64 |
2.36 |
0.80 |
0.69 |
3.95 |
±0.15 |
|
|
14 |
41/0.254 |
8.96 |
1.88 |
0.80 |
0.69 |
3.50 |
±0.15 |
|
|
16 |
26/0.254 |
14.60 |
1.50 |
0.80 |
0.69 |
3.10 |
±0.15 |
|
|
18 |
16/0.254 |
23.20 |
1.17 |
0.80 |
0.69 |
2.75 |
±0.10 |
|
|
20 |
26/0.16 |
36.70 |
0.94 |
0.80 |
0.69 |
2.55 |
±0.10 |
|
|
20 |
21/0.18 |
36.70 |
0.95 |
0.80 |
0.69 |
2.55 |
±0.10 |
|
|
22 |
17/0.16 |
59.40 |
0.76 |
0.80 |
0.69 |
2.35 |
±0.10 |
|
|
24 |
11/0.16 |
94.20 |
0.61 |
0.80 |
0.69 |
2.20 |
±0.10 |
|
|
26 |
7/0.16 |
150.00 |
0.48 |
0.80 |
0.69 |
2.08 |
±0.10 |
|
|
28 |
7/0.127 |
239.00 |
0.38 |
0.80 |
0.69 |
1.98 |
±0.10 |
|
|
30 |
7/0.10 |
381.00 |
0.30 |
0.80 |
0.69 |
1.90 |
±0.10 |
|
