UL3280 is a wire with bare copper conductor, EPDM insulation material, rated voltage of 300V, and operating temperature of 105°C. It should comply with RoHS certification.
Feature
Condutor:Strands Tinned/Bare Copper
Insulation:EPDM
Reted Temperature:105℃
Reted Voltage:300Vac
In the 150-200℃ can be short or intermittent use
Resistance to water vapor
Can be twisted pair and multi-core
Reference standard：UL758-2010,UL1581-2009
Environmental testing pass ROHS
UL 26awg to 14awg
Application
UL3280 is a high-quality wire and cable that complies with UL standards and has a wide range of applications.
In the field of industrial automation
UL3280 is commonly used to connect robots, automated production lines, and other equipment, meeting their requirements for high reliability and stability of cables.
In communication devices
Like routers, switches, etc., it can achieve reliable connections between devices, ensuring smooth network communication.
In the field of transportation equipment
For example, in new energy vehicles, it can be used to connect key components such as battery management systems and motor controllers, ensuring the safety and efficiency of power transmission.
In the power system
UL3280 can be used for power transmission and equipment connection. Its good conductivity and current transmission capability can stably transmit power loads.
Structure
Multiple colors to choose
Our Factory
3F Electronics Industry Corp was established in 1996. The fields involved are: insulation materials, copper conductors, irradiation processing, wire harness processing, new energy, special cables, household cables, locomotive cables, communication cables, aerospace cables, insulating sleeves, cable accessories, etc. Annual sales of more than 1 billion yuan. The group is headquartered at No. 6, Zhenxing Road, Science City, Guangming District, covering an area of 20,000 square meters and self-built factory buildings of 35,000 square meters.
active members
years experience
events & challenges
expert instructors
Certification

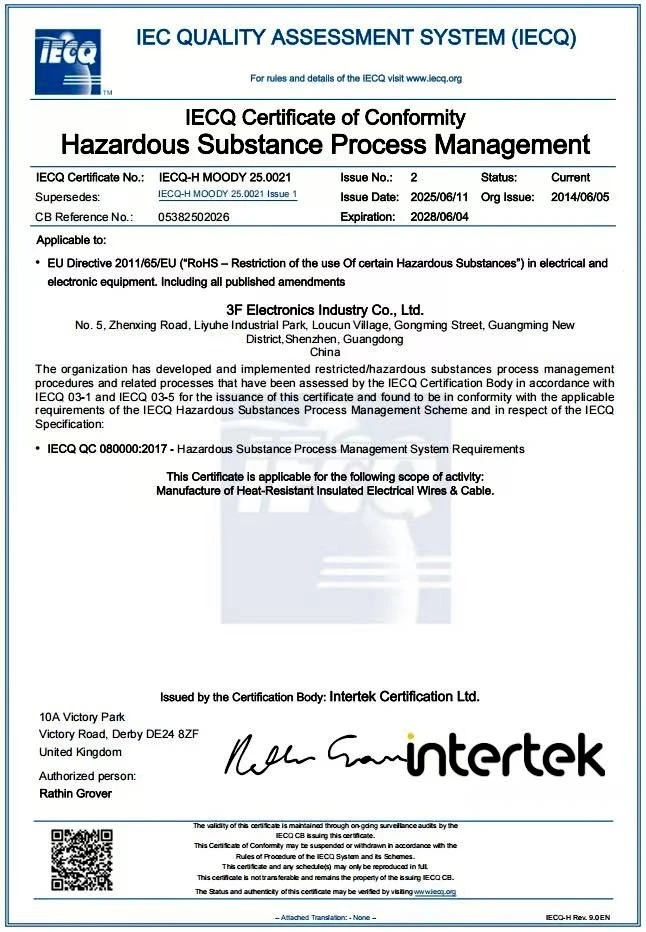

IECQ
VDE
UL
CCC
SA
Solution
FAQ
Q:1.What is the delivery time for mass production?
A:Production lead time: 20~30 days.
Q:2.What is your terms of delivery?
A:We accept EXW, FOB, CFR, CIF. You can choose the one which is the most convenient or cost effective for you.
Q:3.Are your wires ROHS compliant?
A: All our wires are ROHS compliant.
Technical Parameters
|
STYLE |
standard AWG |
Conductor size (No./ mm) ±0.005mm |
Conductor resistance 20℃ (Ω/Km) |
Conductor Dia. (mm) |
insulation thickness (mm) |
Overall diameter (mm) |
||
|
Nom. |
Min. |
Min |
Max |
|||||
|
3280 |
14 |
41/0.254 |
8.96 |
1.88 |
0.76 |
0.68 |
3.40 |
±0.10 |
|
16 |
26/0.254 |
14.60 |
1.50 |
0.76 |
0.68 |
3.05 |
±0.10 |
|
|
18 |
16/0.254 |
23.20 |
1.17 |
0.76 |
0.68 |
2.75 |
±0.10 |
|
|
20 |
21/0.18 |
36.70 |
0.95 |
0.76 |
0.68 |
2.50 |
±0.10 |
|
|
22 |
17/0.16 |
59.40 |
0.76 |
0.76 |
0.68 |
2.25 |
±0.10 |
|
|
24 |
11/0.16 |
94.20 |
0.61 |
0.76 |
0.68 |
2.10 |
±0.10 |
|
|
26 |
7/0.16 |
150.00 |
0.48 |
0.76 |
0.68 |
2.00 |
±0.10 |
|
