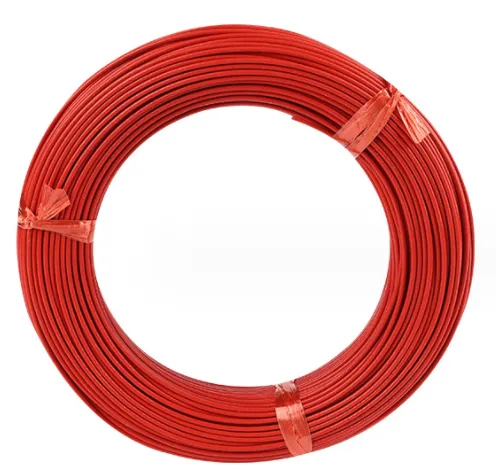

UL3279 Motor Lead Wire is a wire certified by UL. UL3279 Motor Lead Wire adopts high flexibility annealed bare copper conductor, with insulation layer of EPDM, which has characteristics of wear resistance, tear resistance, flame resistance, grease resistance, water resistance, etc. The rated voltage is 600V and does not contain halogens, complying with RoHS standards.
Feature
Condutor:Strands Tinned/Bare Copper
Insulation:EPDM
Reted Temperature:105℃
Reted Voltage:600Vac
Good the dielectric properties
Cutting resistance
Low density high filling ability
Ozone resistance
Reference standard：UL758-2010,UL1581-2009
Environmental testing pass ROHS
UL 26awg to 4/0awg
Application
In the field of industrial automation
UL3279 Motor Lead Wire that can be used for robot arms, automated production lines, and other equipment, capable of withstanding frequent bending and stretching, ensuring stable transmission of power and signals. In terms of heavy machinery, towing systems for equipment such as dump trucks and cranes, as well as power and signal transmission for construction machinery such as mobile crushers, can all leverage their advantages of wear resistance and tensile strength.
In the field of transportation
UL3279 Motor Lead Wire can be used for power and signal connection of railway and subway vehicles, and its good environmental resistance can adapt to various complex working conditions during vehicle operation. In the field of energy, rotating components of wind power equipment and solar tracking systems can also use UL3279 wires to ensure long-term stable operation outdoors. In addition, in some high-end home appliances that require high wire performance, such as smart washing machines, smart refrigerators, etc., UL3279 Motor Lead Wires can also be used for internal circuit connections.
Structure
Ten colors to choose
If you have any other requirements, please let us know.
Partners
3F with a good reputation,excellent quality and sound after-sales service to win the world praise,in many domestic and foreign enterprises shine!
Solution
FAQ
Q:1.When can I get a quote?
A:We usually quote within 24 hours after we get your inquiry.
Q:2.How your quality guarantee?
A: At present, 80% of our products are exported all over the world. Our well-equipped facilities and superior quality control At all stages of production, we are able to guarantee complete customer satisfaction.
Q:3.Are your wires ROHS compliant?
A: All our wires are ROHS compliant.
Technical Parameters
|
STYLE |
standard AWG |
Conductor size (No./ mm) ±0.005mm |
Conductor resistance 20℃ (Ω/Km) |
Conductor Dia. (mm) |
insulation thickness (mm) |
Overall diameter (mm) |
||
|
Nom. |
Min. |
Min |
Max |
|||||
|
3279 |
4/0 |
19/44/0.404 |
0.172 |
15.48 |
1.98 |
1.78 |
19.44 |
±0.25 |
|
3/0 |
7/37/0.643 |
0.219 |
13.54 |
1.98 |
1.78 |
17.5 |
±0.25 |
|
|
2/0 |
19/70/0.254 |
0.277 |
12.26 |
1.98 |
1.78 |
16.22 |
±0.25 |
|
|
7/37/0.574 |
0.277 |
12.31 |
1.98 |
1.78 |
16.27 |
±0.25 |
||
|
1/0 |
19/55/0.254 |
0.349 |
10.88 |
1.98 |
1.78 |
14.84 |
±0.25 |
|
|
7/37/0.51 |
0.349 |
10.94 |
1.98 |
1.78 |
14.90 |
±0.25 |
||
|
1 |
19/44/0.254 |
0.440 |
9.72 |
1.98 |
1.78 |
13.68 |
±0.25 |
|
|
2 |
7/95/0.254 |
0.555 |
8.56 |
1.52 |
1.37 |
11.6 |
±0.20 |
|
|
4 |
7/60/0.254 |
0.882 |
6.81 |
1.52 |
1.37 |
9.85 |
±0.20 |
|
|
6 |
7/38/0.254 |
1.403 |
5.41 |
1.52 |
1.37 |
8.45 |
±0.20 |
|
|
8 |
168/0.254 |
2.23 |
3.80 |
1.52 |
1.37 |
6.84 |
±0.15 |
|
|
10 |
105/0.254 |
3.54 |
3.00 |
1.14 |
1.04 |
5.28 |
±0.15 |
|
|
12 |
65/0.254 |
5.64 |
2.36 |
1.14 |
1.04 |
4.64 |
±0.15 |
|
|
14 |
41/0.254 |
8.96 |
1.88 |
1.14 |
1.04 |
4.16 |
±0.15 |
|
|
16 |
26/0.254 |
14.60 |
1.50 |
1.14 |
1.04 |
3.78 |
±0.15 |
|
|
18 |
16/0.254 |
23.20 |
1.17 |
1.14 |
1.04 |
3.45 |
±0.10 |
|
|
20 |
21/0.18 |
36.70 |
0.95 |
1.14 |
1.04 |
3.23 |
±0.10 |
|
|
22 |
17/0.16 |
59.40 |
0.76 |
1.14 |
1.04 |
3.04 |
±0.10 |
|
|
24 |
11/0.16 |
94.20 |
0.61 |
1.14 |
1.04 |
2.89 |
±0.10 |
|
|
26 |
7/0.16 |
150.00 |
0.48 |
1.14 |
1.04 |
2.76 |
±0.10 |
|
