CHARACTER
a、Tensile strength≥3.45MPa;elongation at break≥100%。 After aging： Condition：180℃±1℃ /168h Tensile strength residual rate≥60%，elongation at break≥25%
b、Flame retardancy：FT2, horizontal burning, burning once, 30s each time, no particles or droplets igniting the cotton layer can be emitted on the sample during the test c、Low temperature bending：－10℃±2℃，4h，no crack on the surface of the sample is qualified
SPECIFICATIONS
Ul Sytle:UL3301
Condutor :stranded ,tinned or bare copper
Insulation :silicone rubber
Braid:fiber glass braid
Reted Temperature:150C
Reted Voltage:600Vac
Standard Reference:UL 758,UL1581
Product application:Solar panels, battery packs, inverters, transformers, induction cookers, ovens, stoves, heaters, power tools, electric vehicles, etc
Shielding Type:unshielded
Combustion Test:Passes ul vw-1 flame test
Medium voltage: 2.0KV , 60 seconds without breakdown
UL 4/0awg to 20awg

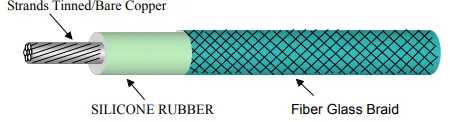

STRUCTURE
Colors Available: BLACK, WHITE, RED, YELLOW, GREEN, BLUE, BROWN, GREY, ORANGE, VIOLET
Package Type：1000Ft/roll, 2000Ft/roll.
