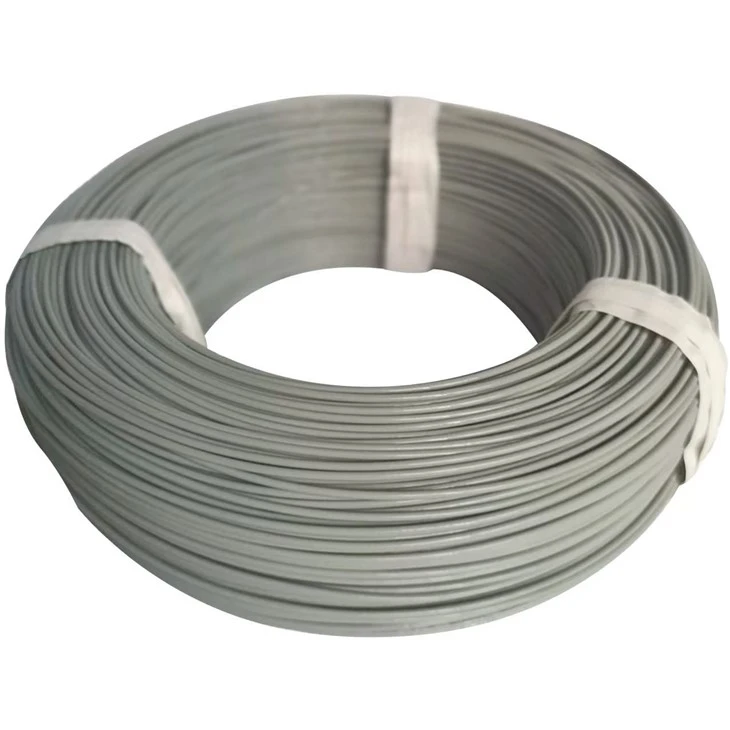

As a RoHS compliant product, UL1061 does not contain halogens and heavy metals, has low smoke and is non-toxic when burned, and meets environmental requirements. This wire is UL certified and suitable for internal lighting circuits, electrical panels, and power transmission of household equipment in buildings. Its 300V voltage level is suitable for low-voltage circuits, such as refrigerator compressor control lines, air conditioning internal connection lines, and other scenarios. The surface of the conductor is treated with tin plating to enhance oxidation resistance, and the semi-rigid PVC insulation layer is resistant to oil stains and easy to peel off, making it a universal wire in the industrial and consumer electronics fields for easy processing by automated equipment.
Feature
Condutor :Strands Tinned/Bare Copper
Insulation :SR-PVC
Reted Temperature:80℃
Reted Voltage:300Vac
High resistance to chemicals
Good resistance to high temperature of the engine fluid
Using the hot extrusion processing
Combustion Test:Passed CSA FT1 combustion testing
Standard Reference:UL 758,UL1581
Environmental testing pass ROHS
UL 30awg to 14awg
Structure
Standard Color:Ten Colors

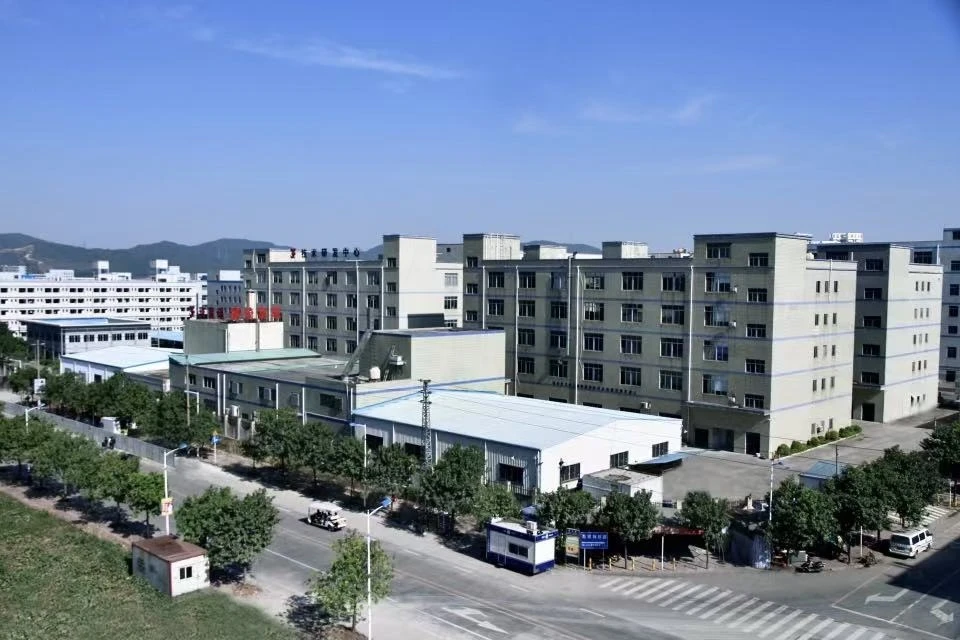

Our Factory
3F Electronics Industry Corp was established in 1996. The fields involved are: insulation materials, copper conductors, irradiation processing, wire harness processing, new energy, special cables, household cables, locomotive cables, communication cables, aerospace cables, insulating sleeves, cable accessories, etc. The group headquarters covers an area of 20000 square meters and has a self built factory building of 35000 square meters.The address is No.6,Zhenxing Road,Liyuhe Industrial Park,Loucun Village,Gongming Town, ShenZhen 518107, China.
one-stop solution
professional team
high quality
Our Service
3F sales and service network is available worldwide to ensure product professionalism and customer after-sales satisfaction. ERP allows the marketing service system to access the order process anytime and anywhere to ensure smooth circulation and delivery.
The Proportion Of Various Types Of Product Sales
One-Stop Shopping
Quality,delivery,service,customer,eventually improvement, zero management defect.
Less resource to transmit more power.
Market Distribution
Being One Of The Best Electronic Components In The World.
Providing The Best Solution To Customers All Over The World.
More Safety And Environment More Harmonious.
FAQ
Q:1.What are the typical applications of UL1061?
A:Common uses include internal circuits in household appliances (e.g., refrigerators, washing machines), control panels for industrial equipment, signal transmission in automation systems, and wiring for LED lighting fixtures.
Q:2.What is your terms of delivery?
A:We accept EXW, FOB, CFR, CIF. You can choose the one which is the most convenient or cost effective for you.
Technical Parameters
|
STYLE
|
SIZE AWG
|
Conductor construction (No./ mm) ±0.005
|
Conductor resistance 20℃ (Ω/Km)
|
Conductor diameter (mm)
|
insulation thickness (mm) |
Over diameter (mm) |
||
|
Nom. |
Min. |
Nom. |
Tole. |
|||||
|
|
14 |
41/0.254 |
8.96 |
1.90 |
0.35 |
0.26 |
2.60 |
±0.15 |
|
16 |
26/0.254 |
14.60 |
1.50 |
0.35 |
0.26 |
2.20 |
±0.1 |
|
|
18 |
16/0.254 |
23.20 |
1.17 |
0.25 |
0.18 |
1.65 |
±0.1 |
|
|
20 |
21/0.18 |
36.70 |
0.95 |
0.25 |
0.18 |
1.45 |
±0.1 |
|
|
10/0.254 |
36.70 |
0.93 |
0.25 |
0.18 |
1.43 |
±0.1 |
||
| 22 |
1/0.65 |
56.40 |
0.65 |
0.25 |
0.18 |
1.15 |
±0.1 |
|
|
7/0.254 |
59.40 |
0.77 |
0.25 |
0.18 |
1.26 |
±0.1 |
||
|
17/0.16 |
59.40 |
0.76 |
0.25 |
0.18 |
1.26 |
±0.1 |
||
|
24 |
7/0.20 |
94.20 |
0.61 |
0.25 |
0.18 |
1.10 |
±0.1 |
|
|
11/0.16 |
94.20 |
0.61 |
0.25 |
0.18 |
1.10 |
±0.1 |
||
|
26 |
7/0.16 |
150.00 |
0.48 |
0.25 |
0.18 |
0.98 |
±0.1 |
|
|
28 |
7/0.127 |
239.00 |
0.38 |
0.25 |
0.18 |
0.88 |
±0.1 |
|
|
30 |
7/0.10 |
361.00 |
0.31 |
0.25 |
0.18 |
0.81 |
±0.1 |
|
|
Stranded conductor single diameter tolerances±0.005mm; Solid conductor diameter tolerances±0.01mm. |
||||||||
