3F Electronics Industry Corp., Ltd. is one of the leading manufacturers and suppliers of mil-w-22759-5 fluoroplastic wire in China. With abundant experience, we warmly welcome you to wholesale durable mil-w-22759-5 fluoroplastic wire for sale here from our factory. If you have any enquiry about quotation, please feel free to email us.

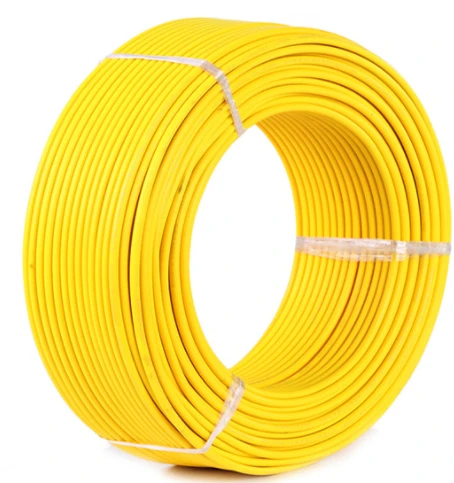

MIL-W-22759-5 Fluoroplastic Wire is a single core military installation wire with a wire gauge covering 24-8 AWG. Rated at 600V, with a temperature range of -55℃ to+200℃, it has high temperature resistance, oil resistance, chemical solvent resistance, low smoke flame retardancy, wear resistance, and excellent electrical insulation properties. MIL-W-22759-5 Fluoroplastic Wire is designed for harsh environments such as aviation engine compartments, high-temperature and wear-resistant wiring on aircraft bodies, and internal wiring of military aircraft/ships/aerospace equipment, and is not suitable for civilian mains power supply.
Feature
Condutor:Silver plating copper conductor
Insulation:PTFE
Reted Temperature:-55～200℃
Reted Voltage:600Vac
High temperature resistance
Oil resistant and chemical solvent resistant
Low smoke flame retardant
Wear resistance and excellent electrical insulation
Reference standard：UL758,UL1581
Environmental testing pass ROHS
UL 24awg to 8awg
Structure
Standard color:ten kinds
Application
MIL-W-22759-5 Fluoroplastic Wire belongs to the installation line inside the equipment/chassis, and is not used for direct burial or permanent building wiring for municipal power supply
Aerospace and industrial extreme environments
High temperature branches at the non engine end of satellites/rockets, gas turbine control cabinets, petrochemical corrosion-resistant instrument wires, all internal hard wires belonging to "200 ℃+wear-resistant+solvent resistant" can use MIL-W-22759-5 Fluoroplastic Wire.
Commercial aircraft cabin and electronic cabinet
MIL-W-22759-5 Fluoroplastic Wire can be used for interconnecting and lighting circuits of equipment with low smoke, flame retardant, and small outer diameter requirements in the cabin, as well as secondary power distribution on the high-temperature side inside the avionics chassis.
Internal wiring of military aircraft/shipborne/ground military platforms
MIL-W-22759-5 Fluoroplastic Wire can be used for fighter jets, helicopters, drone flight control and mission computer peripherals, radar array power and signal lines, oil and solvent resistant branches in ship cabins, meeting MIL level reliability and anti vibration and anti-wear requirements.
Our Factory
3F Electronics Industry Corp was established in 1996, after more than 20 years of continuous accumulation, 3F has become a group enterprise. The fields involved are: insulation materials, copper conductors, irradiation processing, wire harness processing, new energy, special cables, household cables, locomotive cables, communication cables, aerospace cables, insulating sleeves, cable accessories, etc. Annual sales of more than 1 billion yuan. The group is headquartered at No. 5, Zhenxing Road, Science City, Guangming District, covering an area of 20,000 square meters and self-built factory buildings of 35,000 square meters.
Our Service
Corporate vision
Become a world-renowned supplier of electronic components, providing customers with satisfactory electronic solutions.
Quality policy
Quality first, delivery guarantee, active service, customer first, step by step, zero defect management.
Social responsibility
Make our users products safer. Save resources and make the planet we live in a better and more harmonious place.
3F concern
High temperature resistance, high pressure resistance, ultra-thin, environmental protection.
FAQ
Q:1.What is your terms of delivery?
A:We accept EXW, FOB, CFR, CIF. You can choose the one which is the most convenient or cost effective for you.
Q:2.How your quality guarantee?
A: At present, 80% of our products are exported all over the world. Our well-equipped facilities and superior quality control At all stages of production, we are able to guarantee complete customer satisfaction.
If you have any questions, you can consult directly.
Technical Parameters
|
STYLE |
standard AWG |
Conductor size (No./ mm) ±0.005mm |
Conductor |
Conductor Dia.(mm) |
insulation thickness (mm) |
Overall diameter (mm) |
|||
|
Material |
Coating |
Min. |
Max. |
||||||
|
M22759-5 |
24 |
19/0.127 |
copper |
Silver |
0.61 |
0.65 |
1.778 |
2.03 |
|
|
22 |
19/0.16 |
copper |
Silver |
0.76 |
0.65 |
2.03 |
2.29 |
||
|
20 |
19/0.203 |
copper |
Silver |
0.96 |
0.73 |
2.29 |
2.54 |
||
|
18 |
19/0.254 |
copper |
Silver |
1.19 |
0.80 |
2.68 |
2.92 |
||
|
16 |
19/0.287 |
copper |
Silver |
1.34 |
0.92 |
3.05 |
3.3 |
||
|
14 |
19/0.361 |
copper |
Silver |
1.70 |
0.97 |
3.45 |
3.81 |
||
|
12 |
37/0.32 |
copper |
Silver |
2.18 |
0.94 |
3.89 |
4.24 |
||
|
10 |
37/0.404 |
copper |
Silver |
2.74 |
0.90 |
4.37 |
4.72 |
||
|
8 |
133/0.287 |
copper |
Silver |
4. 11 |
1. 1 |
6.12 |
6.48 |
||
