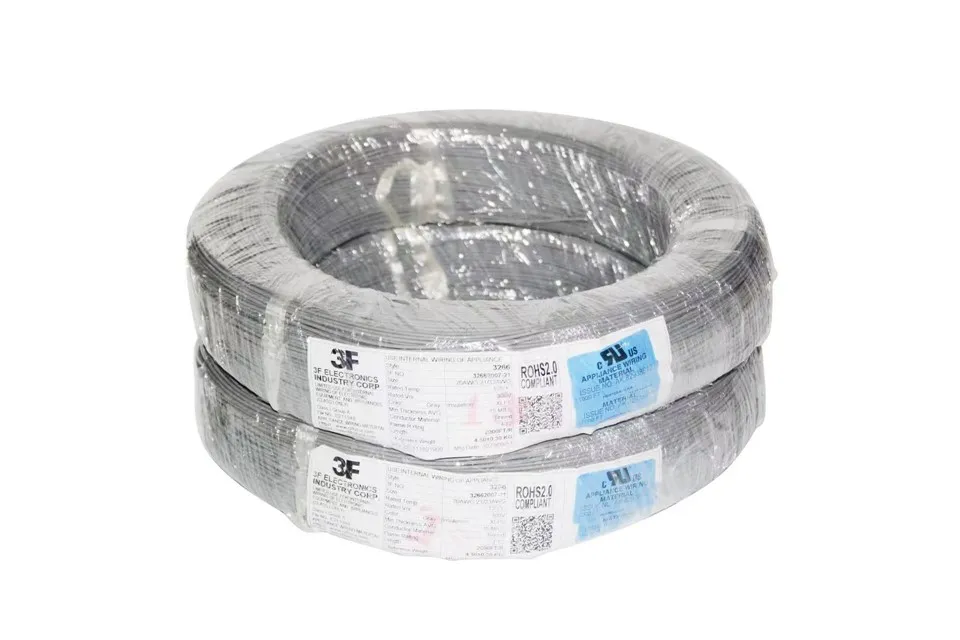

UL1858 High-Temperature Resistant Wire is a PFA insulated single core wire in the UL AWM (Appliance Wiring Material) standard. The rated voltage of UL1858 High-Temperature Resistant Wire is 300V, and the conductor specifications cover 10-30 AWG. Its core characteristics are high and low temperature resistance and chemical corrosion resistance (strong acid, strong alkali resistance), as well as excellent electrical insulation and flame retardancy. It is widely used for internal wiring of equipment with strict temperature and environmental requirements, such as aerospace, petrochemicals, precision instruments, and home appliances (such as microwave ovens, air conditioners).
Feature
Condutor:Strands Nickel plating/tin/bare copper conductor
Insulation:PFA
Reted Temperature:150℃
Reted Voltage:300Vac
Passes UL VW-1 flame test
Good resistance to climate
In the process of wire processing good compatibility
Standard Reference:UL758,UL1581
Environmental testing pass ROHS
UL 30awg to 10awg
Application
Power equipment lead out line
In the internal connections of transformers, motors, and power equipment, UL1858 High Strength Resistance Wire is often used as a lead wire. Its good insulation strength (rated voltage 300V) and corona resistance can withstand instantaneous overvoltage and long-term electromagnetic vibration during motor start-up, preventing equipment failure caused by insulation breakdown.
Strict environment and specialized industries
UL1858 High Strength Resistance Wire is used as a special wiring material in aerospace, automotive engine compartments, and petrochemical equipment. In the vicinity of aircraft or high-temperature furnaces, wires need to simultaneously cope with extreme cold and hot alternation and mechanical vibration; In automotive engine compartments or metallurgical equipment, it is necessary to withstand oil pollution and high temperatures.
Industrial sensing and precision instruments
In industrial automation and process control, UL1858 High Strength Resistance Wire is commonly used as a lead for temperature sensors (such as thermocouples), thermistors (PTC), and pressure transmitters. Its PFA insulation material has strong chemical inertness and can resist oil stains, weak acids, weak bases, and solvent corrosion in industrial environments, ensuring the stability of signal transmission.
Structure
Ten colors to choose
Our Service
3F sales and service network is available worldwide to ensure product professionalism and customer after-sales satisfaction. The company is committed to training professional customer service personnel to provide customers with perfect products and multi-directional professional services. ERP allows the marketing service system to access the order process anytime and anywhere to ensure smooth circulation and delivery.
The proportion of various types of product sales
One-Stop Shopping
Quality,Delivery,Service,Customer,Eventually Improvement, Zero Management Defect.
Less Resource To Transmit More Power.
Market distribution
Being one of the best electronic components in the world.
Providing the best solution to customers all over the world.
More safety and Environment more harmonious.
Solution
Partners
FAQ
Q:1.How your quality guarantee?
A: At present, 80% of our products are exported all over the world. Our well-equipped facilities and superior quality control At all stages of production, we are able to guarantee complete customer satisfaction.
Q:2.Are you a manufacturer?
A: We are a manufacturer located in Shenzhen, Guangdong, China. Our company's sales and service network covers the whole world to guarantee the professionalism of products and the satisfaction of customers' after-sales service.
Q:3.What's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.

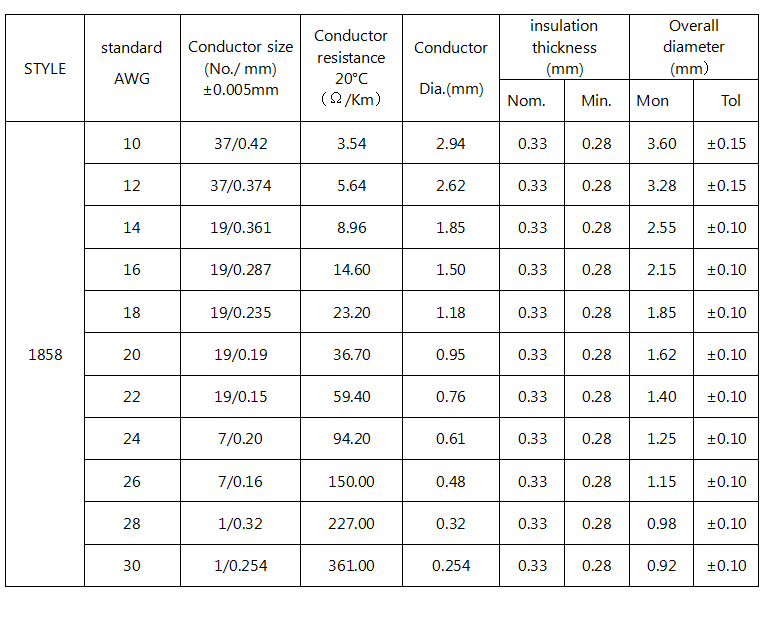

Technical Parameters
|
STYLE |
standard AWG |
Conductor size (No./ mm)±0.005mm |
Conductor resistance 20℃ (Ω/Km) |
Conductor Dia. (mm) |
insulation thickness (mm) |
Overall diameter (mm) |
||
|
Nom. |
Min. |
Mon |
Tol |
|||||
|
1858 |
10 |
37/0.42 |
3.54 |
2.94 |
0.33 |
0.28 |
3.60 |
±0.15 |
|
12 |
37/0.374 |
5.64 |
2.62 |
0.33 |
0.28 |
3.28 |
±0.15 |
|
|
14 |
19/0.361 |
8.96 |
1.85 |
0.33 |
0.28 |
2.55 |
±0.10 |
|
|
16 |
19/0.287 |
14.60 |
1.50 |
0.33 |
0.28 |
2.15 |
±0.10 |
|
|
18 |
19/0.235 |
23.20 |
1.18 |
0.33 |
0.28 |
1.85 |
±0.10 |
|
|
20 |
19/0.19 |
36.70 |
0.95 |
0.33 |
0.28 |
1.62 |
±0.10 |
|
|
22 |
19/0.15 |
59.40 |
0.76 |
0.33 |
0.28 |
1.40 |
±0.10 |
|
|
24 |
7/0.20 |
94.20 |
0.61 |
0.33 |
0.28 |
1.25 |
±0.10 |
|
|
26 |
7/0.16 |
150.00 |
0.48 |
0.33 |
0.28 |
1.15 |
±0.10 |
|
|
28 |
1/0.32 |
227.00 |
0.32 |
0.33 |
0.28 |
0.98 |
±0.10 |
|
|
30 |
1/0.254 |
361.00 |
0.254 |
0.33 |
0.28 |
0.92 |
±0.10 |
|
