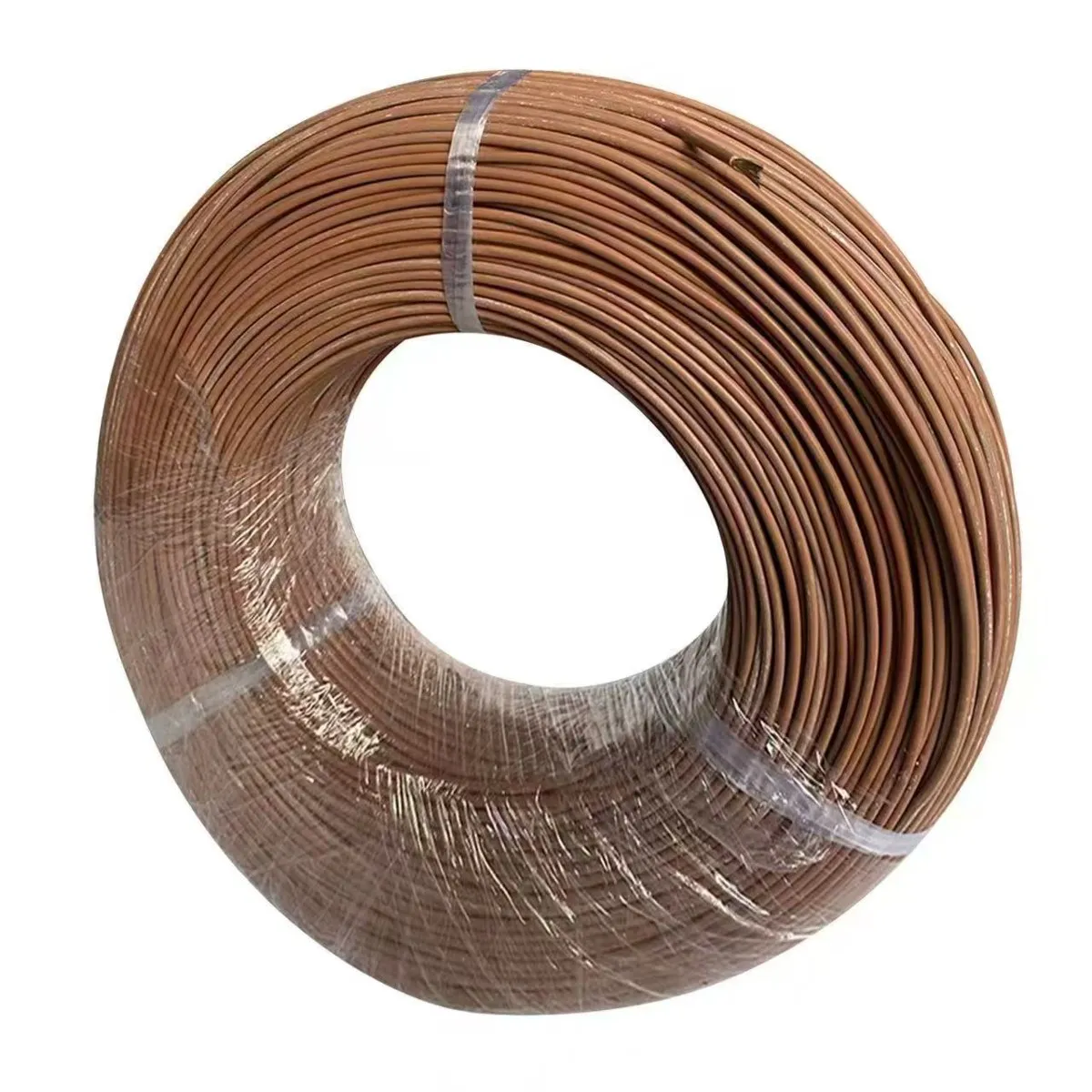

UL2722 PVC Flat Ribbon Cable is a cable that meets the safety standards of Underwriters Laboratories in the United States. This type of cable is commonly known as "colored ribbon cable" or "gray ribbon cable". Its structural feature is that multiple conductors (usually colored) are arranged in parallel, and a layer of PVC insulation sheath is extruded as a whole on the outside, forming a flat and soft strip like appearance.
This standard mainly evaluates the electrical safety, mechanical performance, and flame retardancy of cables. UL2722 certified ribbon cables are widely used for board to board and wire to board connections inside electronic devices due to their advantages of being lightweight, flexible, easy to wire, with fixed conductor spacing and color. Common scenarios in our daily lives include the connection of moving parts inside printers and scanners, signal transmission between computer motherboards and front-end panels, industrial control equipment, and various electrical devices that require space saving and orderly wiring. The conductor size of UL2722 PVC Flat Ribbon Cable is usually AWG 26 to 20 according to the American wire gauge.
Feacture
Condutor:Strands Tinned/Bare Copper
Insulation:PVC
Reted Temperature:105℃
Reted Voltage:300Vac
Combustion Test:passes UL VW-1 flame test
Standard Reference：UL758,UL1581
Environmental testing pass ROHS
UL 26awg to 20awg
If you have any special requirements, please let us know
Application
Office Automation and Computer Peripherals
This is the most classic and widely used application area of UL2722 PVC Flat Ribbon Cable. UL2722 PVC Flat Ribbon Cable is used to connect print heads (letterheads) to motherboards, as well as scanning modules to motherboards. The flat nature of the ribbon cable allows it to closely adhere to the internal space of the body. When the print head moves back and forth at high speed, the cable can bend and stretch regularly without winding or shifting the conductor. Color coding facilitates installation and fault diagnosis. In traditional desktop computers, UL2722 PVC Flat Ribbon Cable is commonly used to connect the USB interface, audio interface, power switch, and indicator lights between the motherboard and the front panel.
Industrial Control and Automation Equipment
In industrial environments that require reliability, anti-interference, and limited wiring space, UL2722 PVC Flat Ribbon Cable is an economical and efficient solution. UL2722 PVC Flat Ribbon Cable connects the I/O module of the programmable logic controller (PLC) to the buttons, indicator lights, and instruments on the control cabinet door. UL2722 PVC Flat Ribbon Cable is used for signal and low-voltage power transmission between motion controllers, servo drives, sensor arrays, and solenoid valve groups. Its neat wiring is conducive to air circulation and heat dissipation inside the equipment, and simplifies maintenance.
Consumer electronics, instrumentation, and others
UL2722 PVC Flat Ribbon Cable is used on audio equipment, DVD/Blu ray players, and TV motherboards to connect front panel control boards, display modules, or sub circuit boards. UL2722 PVC Flat Ribbon Cable connects the keyboard, display screen, and main control circuit board inside compact medical monitoring equipment, oscilloscopes, signal generators, and other devices. UL2722 PVC Flat Ribbon Cable is also one of the most commonly used cables for driving this type of LCD module.
Structure
Standard Color: BLACK WHITE RED YELLOW GREEN BLUE BROWN GREY ORANGE VIOLET
Solution
Our Factory
Established in 1993, 3F Electronics Industry Corp is a professional manufacturer and exporter that is concerned with the design, development and production of wires and tubes. We are located in Shenzhen, with convenient transportation access. The group is headquartered at No. 6, Zhenxing Road, Science City, Guangming District, covering an area of 20,000 square meters and self-built factory buildings of 35,000 square meters. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
active members
years experience
events & challenges
expert instructors
Partners
FAQ
Q:1.What is the delivery time for mass production?
A:Production lead time: 20~30 days.
Q:2.How your quality guarantee?
A: At present, 80% of our products are exported all over the world. Our well-equipped facilities and superior quality control At all stages of production, we are able to guarantee complete customer satisfaction.
Q:3.Are you a manufacturer?
A: We are a manufacturer located in Shenzhen, Guangdong, China. Our company's sales and service network covers the whole world to guarantee the professionalism of products and the satisfaction of customers' after-sales service.
Technical Parameters
|
STYLE |
Cores No. |
SIZE AWG |
Conductor Construction (No./ mm) ±0.005 |
Conductor Resistance 20℃ (Ω/Km) |
Conductor Diameter (mm) |
Insulation Thickness (mm) |
Over Diameter (mm) |
|
|
Nom |
Min. |
|||||||
|
2722 |
2 |
26 |
7/0.16 |
150.00 |
0.48 |
0.40 |
0.33 |
1.28±0.10 ×2.66±0.20 |
|
2 |
24 |
7/0.20 |
94.20 |
0.61 |
0.40 |
0.33 |
1.41±0.10 ×2.90±0.20 |
|
|
2 |
24 |
11/0.16 |
94.20 |
0.61 |
0.40 |
0.33 |
1.41±0.10 ×2.90±0.20 |
|
|
2 |
22 |
7/0.254 |
59.40 |
0.76 |
0.40 |
0.33 |
1.56±0.10 ×3.22±0.20 |
|
|
2 |
20 |
21/0.18 |
36.70 |
0.95 |
0.40 |
0.33 |
1.75±0.10 ×3.60±0.20 |
|
|
3 |
26 |
7/0.16 |
150.00 |
0.48 |
0.40 |
0.33 |
1.28±0.10 ×4.05±0.20 |
|
|
3 |
24 |
11/0.16 |
94.20 |
0.61 |
0.40 |
0.33 |
1.41±0.10 ×4.45±0.20 |
|
|
3 |
22 |
17/0.16 |
59.40 |
0.76 |
0.40 |
0.33 |
1.56±0.10 ×4.88±0.20 |
|
|
3 |
20 |
21/0.18 |
36.70 |
0.95 |
0.40 |
0.33 |
1.75±0.10 ×5.45±0.20 |
|
|
4 |
26 |
7/0.16 |
150.00 |
0.48 |
0.40 |
0.33 |
1.28±0.10 ×5.42±0.20 |
|
|
4 |
24 |
11/0.16 |
94.20 |
0.61 |
0.40 |
0.33 |
1.41±0.10 ×5.95±0.20 |
|
|
4 |
22 |
17/0.16 |
59.40 |
0.76 |
0.40 |
0.33 |
1.56±0.10 ×6.55±0.20 |
|
|
4 |
20 |
21/0.18 |
36.70 |
0.95 |
0.40 |
0.33 |
1.75±0.10 ×7.30±0.20 |
|
