UL1571 wire is an electronic connection wire that complies with UL758 and UL1581 standards. Its rated temperature is 80 ℃, rated voltage is 30V, it adopts environmentally friendly polyvinyl chloride insulation, bare copper or tin plated copper conductors, and has passed UL VW-1 and CUL FT1 vertical combustion tests. It is suitable for internal wiring of electronic and electrical equipment.
Feature
Condutor :Strands Tinned/Bare Copper
Insulation :PVC
Reted Temperature:80℃
Reted Voltage:30Vac
Excellent mechanical properties
Low temperature soft good performance
Good flame retardancy
Using the hot extrusion processing
Good processing properties Harness
Standard Reference:UL 758,UL1581
Environmental testing pass ROHS
UL 30awg to 10awg
Application
UL1571 has become the mainstream choice for internal wiring of mid to low end electronic devices due to its economic practicality, easy installation, and stable performance. It is particularly suitable for scenarios where temperature and voltage requirements are not high, but cost and reliability need to be considered.
UL1571 can be used to connect small control devices, instrument panel signal lines, or simple sensors. For example, the internal circuits of small relays, counters, or detection instruments on factory production lines need to be lightweight, flexible, and able to withstand slight oil stains or mechanical vibrations. UL1571's tin plated copper conductors have strong corrosion resistance, and the PVC insulation layer is resistant to general chemicals, which precisely meets these requirements. In addition, its easy stripping and cutting characteristics also facilitate workers to quickly install and improve production line efficiency.
UL1571 wires that comply with RoHS standards are commonly used for internal wiring of low-power medical instruments such as blood pressure monitors and therapy devices. Due to their environmentally friendly and halogen-free characteristics, they meet the material safety requirements of the medical industry. Meanwhile, in small power tools such as electric screwdrivers and hair dryers, UL1571 can be used as a switch control line or battery connection line to maintain stability in short-term high current startup scenarios, and the soft wire facilitates compact wiring design within the device.

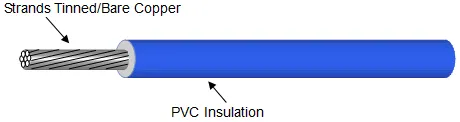

Structure
Colors Available: BLACK, WHITE, RED, YELLOW, GREEN, BLUE, BROWN, GREY, ORANGE, VIOLET
Package Type：500Ft/roll, 1000Ft/roll. 2000Ft/roll
Certification
IECQ
VDE
UL
CCC
SA
Solution
FAQ
Q:1.What is the delivery time for mass production?
A:Production lead time: 20~30 days.
Q:2.What is your terms of delivery?
A:We accept EXW, FOB, CFR, CIF. You can choose the one which is the most convenient or cost effective for you.
Technical Parameters
|
STYLE
|
SIZE AWG
|
Conductor construction (No./ mm) ±0.005
|
Conductor resistance 20℃(Ω/Km) |
Conductor diameter (mm)
|
insulation thickness (mm) |
Over diameter (mm) |
||
|
Nom. |
Min. |
Nom. |
Tole. |
|||||
|
|
10 |
105/0.254 |
3.54 |
3.00 |
0.35 |
0.28 |
3.70 |
±0.15 |
|
12 |
65/0.254 |
5.64 |
2.40 |
0.35 |
0.28 |
3.10 |
±0.15 |
|
|
14 |
41/0.254 |
8.96 |
1.88 |
0.35 |
0.28 |
2.58 |
±0.15 |
|
|
16 |
26/0.254 |
14.60 |
1.50 |
0.35 |
0.28 |
2.10 |
±0.1 |
|
|
18 |
16/0.254 |
23.20 |
1.17 |
0.30 |
0.22 |
1.75 |
±0.1 |
|
|
20 |
21/0.18 |
36.70 |
0.95 |
0.25 |
0.18 |
1.45 |
±0.1 |
|
|
22 |
17/0.16 |
59.40 |
0.76 |
0.25 |
0.18 |
1.26 |
±0.1 |
|
|
24 |
11/0.16 |
94.20 |
0.61 |
0.25 |
0.18 |
1.10 |
±0.1 |
|
|
26 |
7/0.16 |
150.00 |
0.48 |
0.25 |
0.18 |
0.98 |
±0.1 |
|
|
28 |
7/0.127 |
239.00 |
0.38 |
0.20 |
0.18 |
0.78 |
±0.1 |
|
|
30 |
7/0.10 |
381.00 |
0.31 |
0.20 |
0.18 |
0.71 |
±0.1 |
|
