UL1316 is an American standard electronic wire with a rated temperature of 105 ℃ and a rated voltage of 600V. The conductor is a single or stranded wire of 26-12AWG, made of bare copper or tin plated wire, insulated with PVC and sheathed with nylon, in compliance with ROHS environmental standards, and has characteristics such as acid and alkali resistance and oil resistance. It is suitable for internal wiring of electronic equipment.
Feature
Condutor:Strands Tinned/Bare Copper
Insulation:PVC
Covering Materials:Nylon covering
Reted Temperature:150℃
Reted Voltage:600Vac
Combustion Test:passes UL VW-1 flame test
Using the hot extrusion processing
Can be twisted pair and multi-core
Harness processing process good compatibility
Standard Reference：UL 758,UL1581
Environmental testing pass ROHS
UL 26awg to 12awg
Structure
Colors Available: Ten Colors
Package Type：500Ft/roll, 1000Ft/roll. 2000Ft/roll
Certification
IECQ
VDE
UL
CCC
SA
Solution
Partners
FAQ
Q:1.What is the delivery time for mass production?
A:Production lead time: 20~30 days.
Q: What is your terms of delivery?
A: We accept EXW, FOB, CFR, CIF. You can choose the one which is the most convenient or cost effective for you.

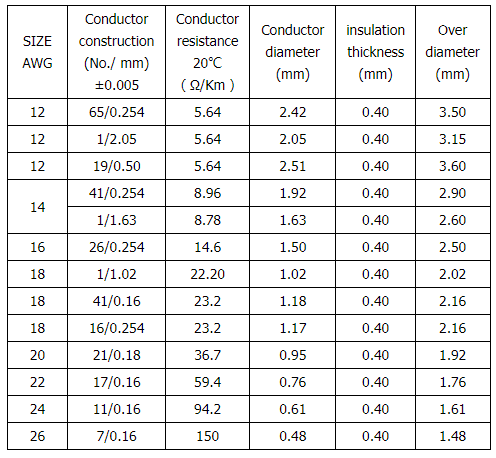

Technical Parameters
|
STYLE
|
SIZE AWG
|
Conductor construction (No./ mm) ±0.005
|
Conductor resistance 20℃ (Ω/Km)
|
Conductor diameter (mm)
|
insulation thickness (mm) |
Over diameter (mm) |
||
|
Nom |
Nylon |
Nom |
Tole. |
|||||
|
1316 |
12 |
65/0.254 |
5.64 |
2.42 |
0.40 |
0.15 |
3.50 |
±0.15 |
|
12 |
1/2.05 |
5.64 |
2.05 |
0.40 |
0.15 |
3.15 |
±0.15 |
|
|
12 |
19/0.50 |
5.64 |
2.51 |
0.40 |
0.15 |
3.60 |
±0.15 |
|
|
14
|
41/0.254 |
8.96 |
1.92 |
0.40 |
0.10 |
2.90 |
±0.1 |
|
|
1/1.63 |
8.78 |
1.63 |
0.40 |
0.10 |
2.60 |
±0.1 |
||
|
16 |
26/0.254 |
14.6 |
1.50 |
0.40 |
0.10 |
2.50 |
±0.1 |
|
|
18 |
1/1.02 |
22.20 |
1.02 |
0.40 |
0.10 |
2.02 |
±0.1 |
|
|
18 |
41/0.16 |
23.2 |
1.18 |
0.40 |
0.10 |
2.16 |
±0.1 |
|
|
18 |
16/0.254 |
23.2 |
1.17 |
0.40 |
0.10 |
2.16 |
±0.1 |
|
|
20 |
21/0.18 |
36.7 |
0.95 |
0.40 |
0.10 |
1.92 |
±0.1 |
|
|
22 |
17/0.16 |
59.4 |
0.76 |
0.40 |
0.10 |
1.76 |
±0.1 |
|
|
24 |
11/0.16 |
94.2 |
0.61 |
0.40 |
0.10 |
1.61 |
±0.1 |
|
|
26 |
7/0.16 |
150 |
0.48 |
0.40 |
0.10 |
1.48 |
±0.1 |
|
