UL3417 Electronic Equipment Wires are wires that comply with safety standards established by Underwriters Laboratories (UL) in the United States. Compared with UL1007 or UL1061 wires of the same grade, a key feature of UL3417 Electronic Equipment Wire is that its insulation is usually made of XLPE material, which gives it a series of superior performance, higher heat resistance level, and better than many standard PVC wires. Excellent resistance to chemical solvents and oil, able to resist the erosion of many industrial chemicals and lubricants. Good mechanical strength and wear resistance, its cross-linked structure enables it to maintain good physical properties at high temperatures, and has strong resistance to cutting and wear.
Feature
Condutor :Strands Tinned/Bare Copper
Insulation :XLPE
Reted Temperature:125℃
Reted Voltage:30Vac
Can be twisted pair and multi-core
Good the dielectric properties
Chemistry stability is good
Low smoke
Non-halogen
Standard Reference:UL758,UL1581
Environmental testing pass ROHS/REACH
UL 30awg to 10awg
Application
Internal wiring of household appliances
This is one of the most common application scenarios for UL3417 Electronic Equipment Wire. It is widely used for electrical connections in high-temperature areas around or inside heating elements. For example, connecting magnetrons, high-voltage transformers, and door interlock switches in a microwave oven; Connect heating plates, temperature controllers, and control circuits at the bottom or inner chamber of rice cookers, pressure cookers, and ovens; Wiring near the heating boilers of coffee and water dispensers. Its high temperature resistance ensures that the wire insulation will not age or crack prematurely when internal heat accumulates during long-term operation of the electrical appliance, ensuring safety.
Industrial control and power equipment
In industrial control cabinets, frequency converters, servo drives, PLC modules, different power outages (UPS), and switch mode power supplies (SMPS), components are densely packed and may generate high temperature rises. UL3417 Electronic Equipment Wire is used for jumper wires between PCB boards, connecting power devices (such as IGBT modules, high current terminals), fans, and internal sensors. Its good chemical resistance can also resist the corrosion of soldering flux and cleaning agents that may come into contact with the equipment during production or maintenance.
Industrial control and power equipment
In industrial control cabinets, frequency converters, servo drives, PLC modules, different power outages (UPS), and switch mode power supplies (SMPS), components are densely packed and may generate high temperature rises. UL3417 Electronic Equipment Wire is used for jumper wires between PCB boards, connecting power devices (such as IGBT modules, high current terminals), fans, and internal sensors. Its good chemical resistance can also resist the corrosion of soldering flux and cleaning agents that may come into contact with the equipment during production or maintenance.
Equipment that requires special reliability
Its excellent wear resistance and mechanical strength make it suitable for devices with complex internal structures and wires that may be subject to friction or compression, such as the connecting wires of moving parts inside office automation equipment (printers, copiers), as well as the control circuits of certain medical equipment (non patient direct contact parts). UL3417 Electronic Equipment Wire is often used to connect the driving power supply inside LED display modules and industrial lighting fixtures to ensure long-term stable operation in enclosed heat dissipation spaces.

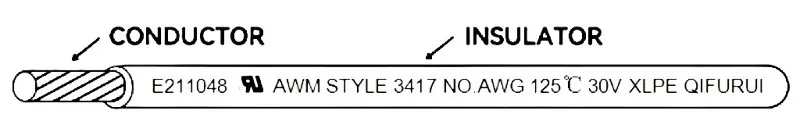

Structure
Colors Available: BLACK, WHITE, RED, YELLOW, GREEN, BLUE, BROWN, GREY, ORANGE, VIOLET
Partners
Certification
IECQ
VDE
UL
CCC
SA
Solution
FAQ
Q:1.What is the delivery time for mass production?
A:About 20 to 30 days.
Q:2.Are your wires ROHS compliant?
A: All our wires are ROHS compliant.
Q:3.What's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.

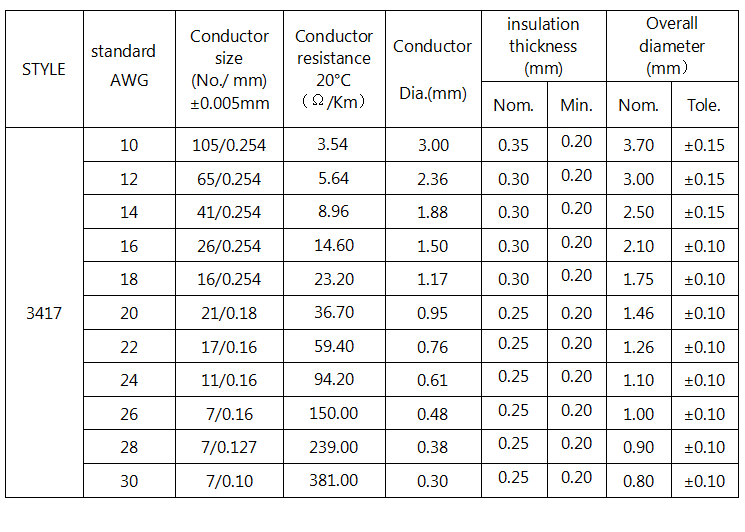

Technical Parameters
|
STYLE |
standard AWG |
Conductor size (No./ mm) ±0.005mm |
Conductor resistance 20℃ (Ω/Km) |
Conductor Dia. (mm) |
insulation thickness (mm) |
Overall diameter (mm) |
||
|
Nom. |
Min. |
Nom. |
Tole. |
|||||
|
3417
|
10 |
105/0.254 |
3.54 |
3.00 |
0.35 |
0.20 |
3.70 |
±0.15 |
|
12 |
65/0.254 |
5.64 |
2.36 |
0.30 |
0.20 |
3.00 |
±0.15 |
|
|
14 |
41/0.254 |
8.96 |
1.88 |
0.30 |
0.20 |
2.50 |
±0.15 |
|
|
16 |
26/0.254 |
14.60 |
1.50 |
0.30 |
0.20 |
2.10 |
±0.10 |
|
|
18 |
16/0.254 |
23.20 |
1.17 |
0.30 |
0.20 |
1.75 |
±0.10 |
|
|
20 |
21/0.18 |
36.70 |
0.95 |
0.25 |
0.20 |
1.46 |
±0.10 |
|
|
22 |
17/0.16 |
59.40 |
0.76 |
0.25 |
0.20 |
1.26 |
±0.10 |
|
|
24 |
11/0.16 |
94.20 |
0.61 |
0.25 |
0.20 |
1.10 |
±0.10 |
|
|
26 |
7/0.16 |
150.00 |
0.48 |
0.25 |
0.20 |
1.00 |
±0.10 |
|
|
28 |
7/0.127 |
239.00 |
0.38 |
0.25 |
0.20 |
0.90 |
±0.10 |
|
|
30 |
7/0.10 |
381.00 |
0.30 |
0.25 |
0.20 |
0.80 |
±0.10 |
|
