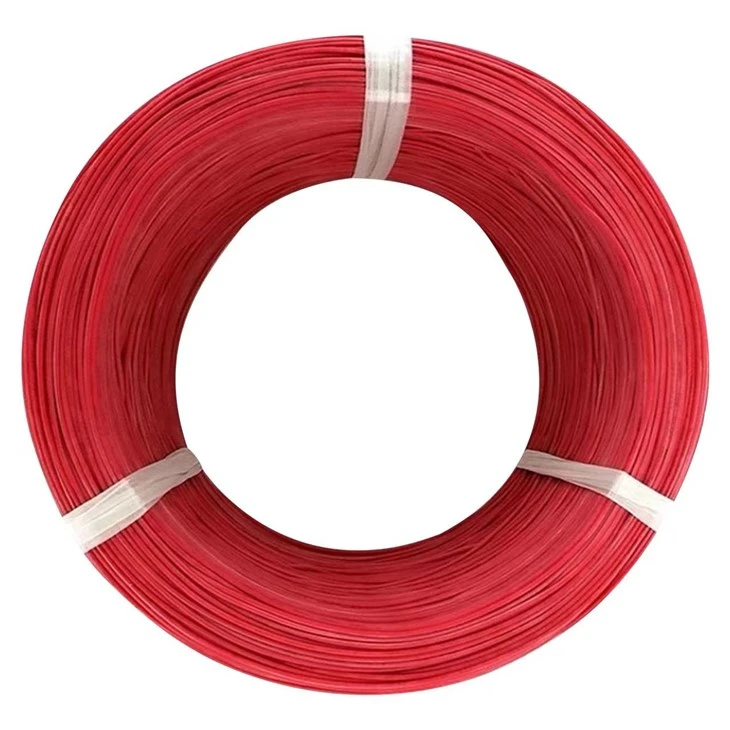

UL3288 belongs to the American standard UL electronic wire and is often used in various electronic devices. It uses tin plated or bare copper wire as the conductor, insulated with cross-linked flame-retardant polyethylene material, rated temperature up to 150℃, rated voltage 600V, passed UL VW-1 CSA FT1 vertical combustion test, environmentally friendly and has good performance.
Feature
Condutor :Strands Tinned/Bare Copper
Insulation :XLPE
Reted Temperature:150℃
Reted Voltage:600Vac
Low temperature soft good performance
Low smoke
Non-halogen
Passes UL VW-1 & CSA FT1 vertical flame test
Passes UL & CSA FT2 horizontal flame test
Standard Reference:UL758,UL1581
Environmental testing pass ROHS
UL 30awg to 10awg
Application
-
In the field of electronic devices
Such as computers, printers, copiers, speakers, etc., it can be used to connect various electronic components, achieve signal transmission and power supply. Its excellent electrical performance ensures stable operation of the equipment, and its low smoke and halogen-free characteristics also improve safety during use, reducing the generation of harmful gases even in high temperature environments.
-
UL3288 wires are mainly used for internal wiring of electronic and electrical equipment.
-
In terms of electrical equipment
For large household appliances such as air conditioners, refrigerators, washing machines, etc., UL3288 wires can be used as internal power or control lines because they can withstand a certain voltage and current, have good insulation performance, and can effectively prevent leakage and short circuits, ensuring the normal operation of electrical appliances and the safety of users.
Structure
Colors Available: BLACK, WHITE, RED, YELLOW, GREEN, BLUE, BROWN, GREY, ORANGE, VIOLET
Partners
Solution
If you have any questions, you can consult us and we will reply to you immediately!
Or if you haven't found the model you need, you can contact us directly.
You can contact us through the floating window on the right and the button below.
FAQ
Q:1.How your quality guarantee?
A:At present, 80% of our products are exported all over the world. Our well-equipped facilities and superior quality control At all stages of production, we are able to guarantee complete customer satisfaction.
Q:2.What is your terms of delivery?
A:We accept EXW, FOB, CFR, CIF. You can choose the one which is the most convenient or cost effective for you.
Q:3.What is the delivery time for mass production?
A:About 20 to 30 days.
Q:4.When can I get a quote?
A:We usually quote within 24 hours after we get your inquiry.
Technical Parameters
|
STYLE
|
standard AWG
|
Conductor size (No./ mm) ±0.005mm
|
Conductor resistance 20℃ (Ω/Km)
|
Conductor Dia. (mm)
|
insulation thickness (mm) |
Overall diameter (mm) |
||
|
Nom. |
Min. |
Nom. |
Tole. |
|||||
|
3288 |
10 |
105/0.254 |
3.54 |
3.00 |
0.80 |
0.69 |
4.60 |
±0.15 |
|
12 |
65/0.254 |
5.64 |
2.42 |
0.80 |
0.69 |
3.95 |
±0.15 |
|
|
14 |
41/0.254 |
8.96 |
1.92 |
0.80 |
0.69 |
3.45 |
±0.15 |
|
|
16 |
26/0.254 |
14.60 |
1.50 |
0.80 |
0.69 |
3.10 |
±0.1 |
|
|
18 |
16/0.254 |
23.20 |
1.18 |
0.80 |
0.69 |
2.75 |
±0.1 |
|
|
20 |
21/0.18 |
36.70 |
0.95 |
0.80 |
0.69 |
2.55 |
±0.1 |
|
|
22 |
17/0.16 |
59.40 |
0.76 |
0.80 |
0.69 |
2.35 |
±0.1 |
|
|
24 |
11/0.16 |
94.20 |
0.61 |
0.80 |
0.69 |
2.20 |
±0.1 |
|
|
26 |
7/0.16 |
150.00 |
0.48 |
0.80 |
0.69 |
2.08 |
±0.1 |
|
|
28 |
7/0.127 |
239.00 |
0.38 |
0.80 |
0.69 |
1.98 |
±0.1 |
|
|
30 |
7/0.10 |
381.00 |
0.30 |
0.80 |
0.69 |
1.90 |
±0.10 |
|
