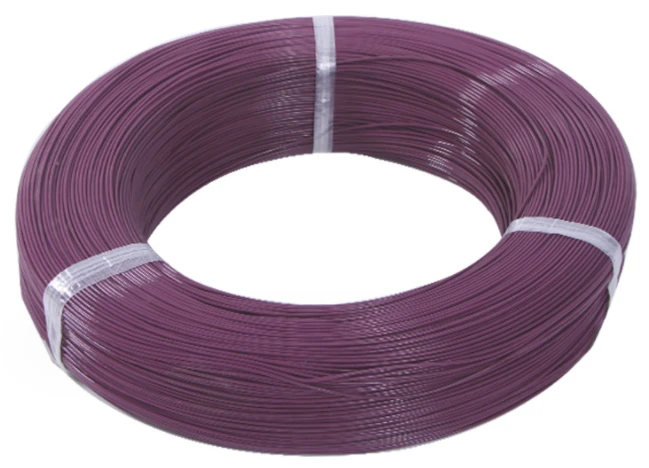

UL2651 is an authoritative certified wire. It is produced according to UL758, UL1581 and other standards, with a rated temperature of 105℃ and a rated voltage of 300V. The conductor is made of single or twisted 30-14AWG tin plated, bare copper, and covered with PVC insulation layer that meets ROHS and REACH environmental standards. It is commonly used for internal wiring of electronic and electrical equipment.
Feature
Condutor:Strands Tinned/Bare Copper
Insulation:PVC
Reted Temperature:105℃
Reted Voltage:300Vac
Excellent thermal stability
Good flame retardancy
Chemistry stability is good
Excellent resistance to impact ability
Using the hot extrusion processing
Can be twisted pair and multi-core
Standard Reference：UL 758,UL1581
Environmental testing pass ROHS
UL 30awg to 14awg
Structure
Colors Available: Ten Colors
Our Factory
Our company was founded in 1996, and after more than 20 years of continuous accumulation, QifuRui has become a group enterprise. 3F Electronics Industry Corp.Ltd has insulation material plant, copper line processing plant, crossline irradiation plant.
Partners
FAQ
Q:1.How your quality guarantee?
A:At present, 80% of our products are exported all over the world. Our well-equipped facilities and superior quality control At all stages of production, we are able to guarantee complete customer satisfaction.
Q:2.When can I get a quote?
A:We usually quote within 24 hours after we get your inquiry.
Technical Parameters
|
Type
|
AWG
|
Conductor size (No./ mm) ±0.005
|
Conductor resistance 20℃ (Ω/Km)
|
Conductor Dia. (mm)
|
Insulation thickness (mm) |
Overall diameter (mm)
|
|
|
Nom. |
Min. |
||||||
|
|
14 |
41/0.254 |
8.96 |
1.88 |
0.35 |
0.28 |
2.60±0.15×5.30±0.30 |
|
16 |
26/0.254 |
14.60 |
1.50 |
0.25 |
0.18 |
2.00±0.10× 4.10+/-0.20 |
|
|
18 |
41/0.16 |
23.20 |
1.17 |
0.25 |
0.18 |
1.65±0.10× 3.40±0.20 |
|
|
20 |
21/0.18 |
36.70 |
0.95 |
0.25 |
0.18 |
1.45±0.10× 3.00±0.20 |
|
|
22 |
17/0.16 |
59.40 |
0.76 |
0.25 |
0.18 |
1.26±0.10× 2.62±0.20 |
|
|
24 |
11/0.16 |
94.20 |
0.61 |
0.25 |
0.18 |
1.10±0.10× 2.30±0.20 |
|
|
26 |
7/0.16 |
150.00 |
0.48 |
0.25 |
0.18 |
0.98±0.05× 2.06±0.10 |
|
|
28 |
7/0.127 |
239.00 |
0.38 |
0.25 |
0.18 |
0.88±0.05× 1.86±0.10 |
|
|
30 |
7/0.10 |
381.00 |
0.30 |
0.25 |
0.18 |
0.80±0.05× 1.70±0.10 |
|
